Manufacturer: Hirosugi Instruments Co., Ltd.
Model: DSB-0000JE

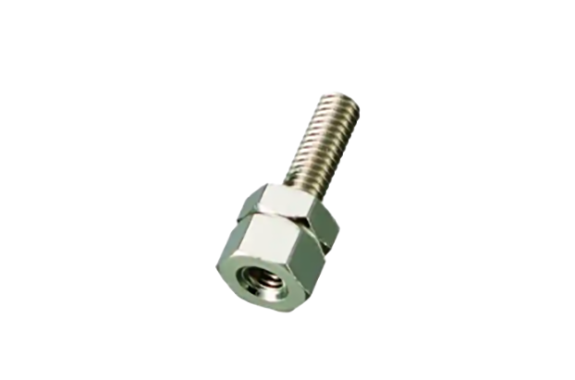

It can be used as a spacer for installing D-Sub connectors used in computers and their peripherals, control devices, etc.

Specification

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1	ℓ2
M2.5 (0.45)	4.3	DSB-8043JE	2.8	8
	4.5	DSB-5045JE	2.5	5
	4.6	DSB-5046JE	3	5
	4.6	DSB-7946JE	3	7.9
	4.6	DSB-8046JE	3	8
	4.8	DSB-1048JE	3	10
	5.4	DSB-7954JE	3.5	7.9
	5.5	DSB-5055JE	3.5	5
	6	DSB-4060JE	4	4
	6.15	DSB-1361JE	4	13
	6.15	DSB-6061JE	4	6
	6.2	DSB-1062JE	4	10
	6.2	DSB-7962JE	4.5	7.9
	6.5	DSB-5065JE	4	5
	8.5	DSB-5085JE	5	5
	10.5	DSB-8510JE	5	8.5
	12.5	DSB-5012JE	5	5
	13.5	DSB-5013JE	5	5
	18	DSB-1018JE	5	10
