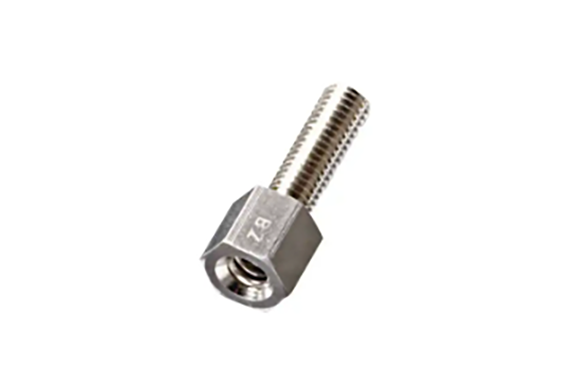

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: DSE-0000AN

It can be used as a spacer for installing D-Sub connectors used in computers and their peripherals, control devices, etc.

Specification

Material

Lead-free free-cutting brass (bismuth-based C6801BD)
Lead content less than 100 ppm,
Cadmium content less than 10 ppm

process

Nickel plating (Ni)

*The body displays the BZ laser mark for identification.

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1	ℓ2
M2.6 (0.45)	4.3	DSE-8043AN	2.8	8
	4.5	DSE-5045AN	3	5
	4.6	DSE-5046AN	3	5
	4.6	DSE-7946AN	3	7.9
	4.6	DSE-8046AN	3	8
	4.8	DSE-1048AN	3	10
	5.4	DSE-7954AN	3.5	8
	5.5	DSE-5055AN	3.5	5
	6	DSE-4060AN	4	4
	6.15	DSE-1361AN	4	13
	6.15	DSE-6061AN	4	6
	6.15	DSE-1061AN	4	10
	6.2	DSE-1062AN	4	10
	6.2	DSE-7962AN	4	8
	6.5	DSE-5065AN	4.5	5
	8.5	DSE-5085AN	5	5
	10.5	DSE-8510AN	5	9
	12.5	DSE-5012AN	5	5
	13.5	DSE-5013AN	5	5
	18	DSE-1018AN	5	10

Bismuth-based

The lead-free and cadmium-free brass spacer uses a new alloy manufactured by San-Etsu Metals Co., Ltd. and complies with the European Restriction of Hazardous Substances Directive.

[Note] Regarding domestic recycling

Conventional free-cutting brass material (C3604BD) contains 3.7 wt% or less lead, which improves machinability. This product contains bismuth instead of lead, which improves machinability. When recycling, do not mix with other brass alloys.
This product is printed with the BZ symbol. Please contact Hirosugi Keiki Co., Ltd. or San-Etsu Metals Co., Ltd. when recycling.
