Manufacturer: Hirosugi Instruments Co., Ltd.
Model: KRB-300

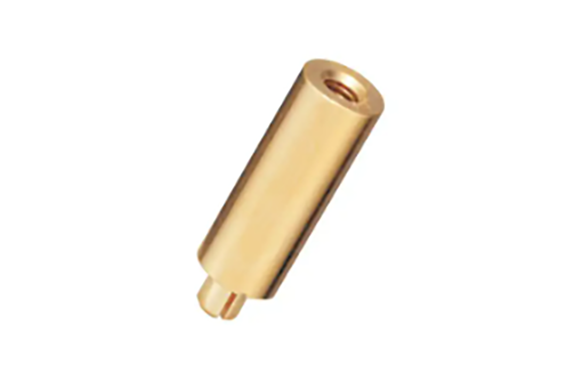

This is a spacer type terminal that is attached to the board by soldering.

Specification

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Gold flash (nickel undercoat)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ
M3 (0.5)	5	KRB-305	2.5
	6	KRB-306	3
	7	KRB-307	4
	8	KRB-308	5.5
	9	KRB-309	7
	10	KRB-310	7
	11	KRB-311	7
	12	KRB-312	7
	13	KRB-313	7
	14	KRB-314	7
	15	KRB-315	7
