Manufacturer: Hirosugi Instruments Co., Ltd.

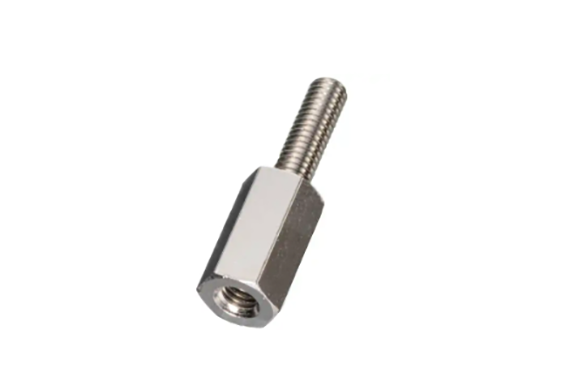

Model: LSU-400-10

Specification

Material

Free-cutting stainless steel (SUS303)

process

Degreasing

Exterior drawings

L tolerance:
up to L=60 ±0.1,
L=61 to 100 ±0.2,
L=110 and above ±0.3

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7)	6	LSU-406-10	3.5
	6.5	LSU-406.5-10	3.5
	7	LSU-407-10	4.5
	7.5	LSU-407.5-10	4.5
	8	LSU-408-10	5.5
	8.5	LSU-408.5-10	5.5
	9	LSU-409-10	6
	9.5	LSU-409.5-10	6
	10	LSU-410-10	7
	10.5	LSU-410.5-10	7
	11	LSU-411-10	8
	11.5	LSU-411.5-10	8
	12	LSU-412-10	8
	12.5	LSU-412.5-10	8
	13	LSU-413-10	8
	13.5	LSU-413.5-10	8
	14	LSU-414-10	8
	14.5	LSU-414.5-10	8
	15	LSU-415-10	8
	15.5	LSU-415.5-10	8
	16	LSU-416-10	8
	16.5	LSU-416.5-10	8
	17	LSU-417-10	8
	17.5	LSU-417.5-10	8
	18	LSU-418-10	8
	18.5	LSU-418.5-10	8
	19	LSU-419-10	8
	19.5	LSU-419.5-10	8
	20	LSU-420-10	8
	20.5	LSU-420.5-10	8
	twenty one	LSU-421-10	8
	21.5	LSU-421.5-10	8
	twenty two	LSU-422-10	8
	22.5	LSU-422.5-10	8
	twenty three	LSU-423-10	8
	23.5	LSU-423.5-10	8
	twenty four	LSU-424-10	8
	24.5	LSU-424.5-10	8
	twenty five	LSU-425-10	8
	25.5	LSU-425.5-10	8
	26	LSU-426-10	8
	26.5	LSU-426.5-10	8
	27	LSU-427-10	8
	27.5	LSU-427.5-10	8
	28	LSU-428-10	8
	28.5	LSU-428.5-10	8
	29	LSU-429-10	8
	29.5	LSU-429.5-10	8
	30	LSU-430-10	8
	31	LSU-431-10	8
	32	LSU-432-10	8
	33	LSU-433-10	8
	34	LSU-434-10	8
	35	LSU-435-10	8
	36	LSU-436-10	8
	37	LSU-437-10	8
	38	LSU-438-10	8
	39	LSU-439-10	8
	40	LSU-440-10	8
	41	LSU-441-10	8
	42	LSU-442-10	8
	43	LSU-443-10	8
	44	LSU-444-10	8
	45	LSU-445-10	8
46	LSU-446-10	8
47	LSU-447-10	8
48	LSU-448-10	8
49	LSU-449-10	8
50	LSU-450-10	8
51	LSU-451-10	8
52	LSU-452-10	8
53	LSU-453-10	8
54	LSU-454-10	8
55	LSU-455-10	8
56	LSU-456-10	8
57	LSU-457-10	8
58	LSU-458-10	8
59	LSU-459-10	8
60	LSU-460-10	8
61	LSU-461-10	8
62	LSU-462-10	8
63	LSU-463-10	8
64	LSU-464-10	8
65	LSU-465-10	8
66	LSU-466-10	8
67	LSU-467-10	8
68	LSU-468-10	8
69	LSU-469-10	8
70	LSU-470-10	8
71	LSU-471-10	8
72	LSU-472-10	8
73	LSU-473-10	8
74	LSU-474-10	8
75	LSU-475-10	8
76	LSU-476-10	8
77	LSU-477-10	8
78	LSU-478-10	8
79	LSU-479-10	8
80	LSU-480-10	8
81	LSU-481-10	8
82	LSU-482-10	8
83	LSU-483-10	8
84	LSU-484-10	8
85	LSU-485-10	8
86	LSU-486-10	8
87	LSU-487-10	8
88	LSU-488-10	8
89	LSU-489-10	8
90	LSU-490-10	8
91	LSU-491-10	8
92	LSU-492-10	8
93	LSU-493-10	8
94	LSU-494-10	8
95	LSU-495-10	8
96	LSU-496-10	8
97	LSU-497-10	8
98	LSU-498-10	8
99	LSU-499-10	8
100	LSU-4100-10	8
110	LSU-4110-10	8
120	LSU-4120-10	8
130	LSU-4130-10	8
140	LSU-4140-10	8
150	LSU-4150-10	8
