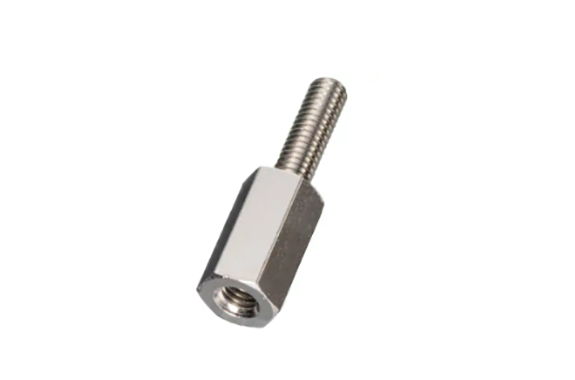

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: LSU-500-13

Specification

Material

Free-cutting stainless steel (SUS303)

process

Degreasing

Exterior drawings

L tolerance:
up to L=60 ±0.1,
L=65 to 100 ±0.2,
L=110 and above ±0.3

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	LSU-508-13	5
	10	LSU-510-13	7
	12	LSU-512-13	9
	15	LSU-515-13	10
	18	LSU-518-13	10
	20	LSU-520-13	10
	twenty five	LSU-525-13	10
	30	LSU-530-13	10
	35	LSU-535-13	10
	40	LSU-540-13	10
	45	LSU-545-13	10
	50	LSU-550-13	10
	55	LSU-555-13	10
	60	LSU-560-13	10
	65	LSU-565-13	10
	70	LSU-570-13	10
	75	LSU-575-13	10
	80	LSU-580-13	10
	85	LSU-585-13	10
	90	LSU-590-13	10
	95	LSU-595-13	10
	100	LSU-5100-13	10
	110	LSU-5110-13	10
	120	LSU-5120-13	10
	125	LSU-5125-13	10
	130	LSU-5130-13	10
	140	LSU-5140-13	10
	150	LSU-5150-13	10
