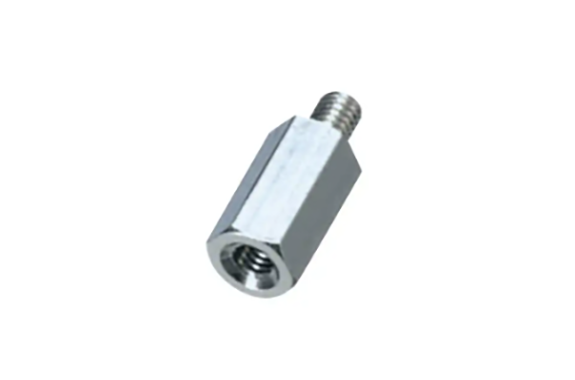

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: MSF-300-03E

Specification

Material

Free-cutting steel (SUM)

process

Trivalent chromium chromate treatment

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	5	MSF-305-03E	3
	5.5	MSF-305.5-03E	3
	6	MSF-306-03E	4
	6.5	MSF-306.5-03E	4
	7	MSF-307-03E	5
	7.5	MSF-307.5-03E	5
	8	MSF-308-03E	6
	8.5	MSF-308.5-03E	6
	9	MSF-309-03E	6
	9.5	MSF-309.5-03E	6
	10	MSF-310-03E	6
	10.5	MSF-310.5-03E	6
	11	MSF-311-03E	6
	11.5	MSF-311.5-03E	6
	12	MSF-312-03E	6
	12.5	MSF-312.5-03E	6
	13	MSF-313-03E	6
	13.5	MSF-313.5-03E	6
	14	MSF-314-03E	6
	14.5	MSF-314.5-03E	6
	15	MSF-315-03E	6
	15.5	MSF-315.5-03E	6
	16	MSF-316-03E	6
	16.5	MSF-316.5-03E	6
	17	MSF-317-03E	6
	17.5	MSF-317.5-03E	6
	18	MSF-318-03E	6
	18.5	MSF-318.5-03E	6
	19	MSF-319-03E	6
	19.5	MSF-319.5-03E	6
	20	MSF-320-03E	6
