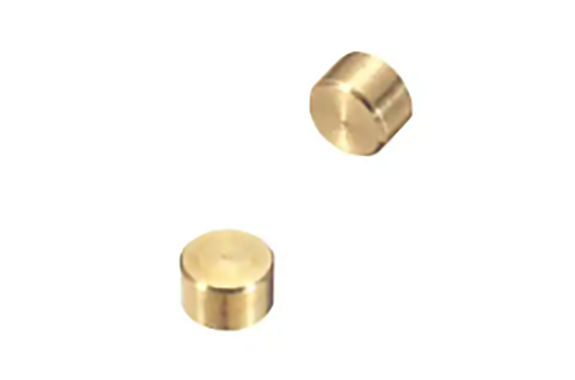

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: SM-000E

Specification

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

No plating

Exterior drawings

For coarse threads

Order quantity: 50 or more

Screws used	DC	Female thread inner diameter (reference value)	L	Part Number
M2	1.4-0.2	1.52	1	SM-201E
			1.5	SM-201.5E
M2.6	2.0-0.2	2.06	1	SM-261E
			1.5	SM-261.5E
			2	SM-262E
M3	2.2-0.2	2.28	1	SM-301E
			1.5	SM-301.5E
			2	SM-302E
M4	3.0-0.2	3.10	1	SM-401E
			1.5	SM-401.5E
			2	SM-402E
M5	3.8-0.3	3.92	2	SM-502E
			2.5	SM-502.5E
			3	SM-503E
M6	4.7-0.3	4.81	3	SM-603E
			3.5	SM-603.5E
			4	SM-604E
M8	6.4-0.3	6.51	4	SM-804E
			4.5	SM-804.5E
			5	SM-805E
M10	8.1-0.3	August 21	4	SM-1004E
			4.5	SM-1004.5E
			5	SM-1005E
			5.5	SM-1005.5E
M12	9.8-0.3	9.92	5	SM-1205E
			5.5	SM-1205.5E
			6	SM-1206E
			6.5	SM-1206.5E
