Manufacturer: Hirosugi Instruments Co., Ltd.
Model: TRT(TR)-1000E

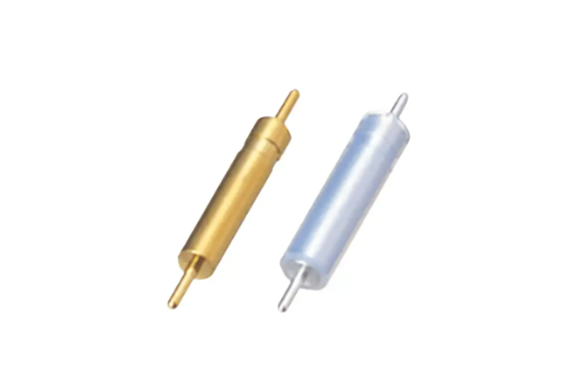

This ultra-compact spacer has both electrical and mechanical functions. It is a high-quality spacer that is gold (silver) plated so that it can be inserted into solder bath assembly and sockets, and is fitted with fluorine resin to prevent noise and touch-ups when checking the board.

Specification

TR main unit

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

L=5 to 10 is gold flash (nickel undercoat)
L=12 to 20 is silver plated

PTFE

Material

PTFE tube

color

White Opaque

Heat resistant temperature

240℃

UL standard

UL94V-0 (material)

Exterior drawings

TRT…with PTFE
TR…without PTFE

TRT-1000E
With PTFE
L	Part Number	D
5	TRT-1005E	2.2
7	TRT-1007E	2.2
8	TRT-1008E	2.2
10	TRT-1010E	3.15
12	TRT-1012E	3.15
15	TRT-1015E	3.15
18	TRT-1018E	3.15
20	TRT-1020E	3.15
TR-1000E
No PTFE
L	Part Number	d
5	TR-1005E	1.2
7	TR-1007E	1.2
8	TR-1008E	1.2
10	TR-1010E	2.15
12	TR-1012E	2.15
15	TR-1015E	2.15
18	TR-1018E	2.15
20	TR-1020E	2.15
