Hishiko KMLG Series Magnetic Rider Gauge
Manufacturer: Hishiko Co., Ltd.
Model: KMLG Series
Features
This use for checking overhanging measurement of cutting edge installed on arbor of boring machine.
Specifications

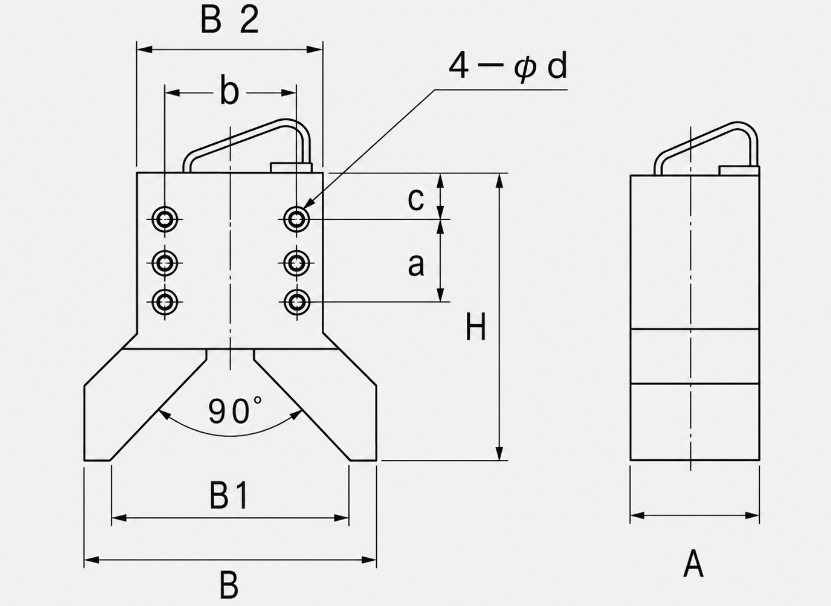

| Stock No. | Model | Dimension øＤ×Ｈ | Mounting hole | Squareness of mounting surface and V-surface(μm) |
Max. Holding Power |
Weight (kg) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | H | B1 | B2 | a | b | c | d | |||||
| S931411 | KMLG-1 | 35 | 50 | 55 | 38 | 45 | 15 | 35 | 12 | M4 Depth 8 |
20 | 140N(14kgf) | 0.5 |
| S931412 | KMLG-2 | 40 | 80 | 75 | 65 | 50 | 20 | 35 | 12.5 | M6 Depth 10 |
200N(20kgf) | 1 | |
| S931413 | KMLG-3 | 56 | 140 | 110 | 125 | 60 | 25 | 45 | 15 | M8 Depth 13 |
24 | 250N(25kgf) | 3 |
