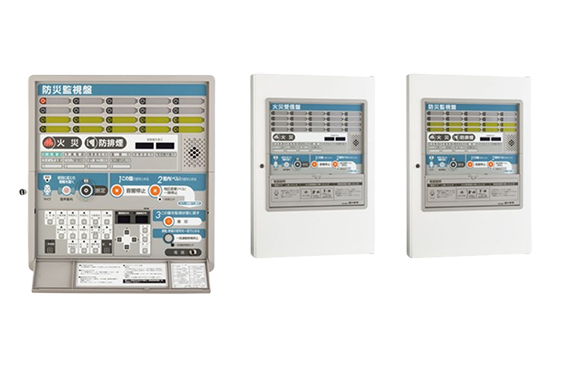

Hochiki RPV Series P-type System
Manufacturer: Hochiki Corporation
Model: RPV Series
Features
P-type Class 1 receiver with automatic testing function for small and medium-sized facilities. RPV series optimized for renewal support!
- Large switches and LED displays make it easy to see and operate
- Equipped with a voice guidance function that provides various navigation functions
- Various settings for the receiver can be made on a PC before installation (line type, available lines, interlocking matrix, etc.)
- Construction support functions allow one person to carry out heating and smoke tests
- History check function: Up to 1,200 events
Specifications, appearance diagram, instructions
| Product Code | specification | remarks |
| RPV-AAW□ | P-type Class 1 receiver (accumulation type) 05-20 Wall-mounted/surface-mounted | fire alarm single edition |
| RPV-AAU□ | P-type Class 1 receiver (accumulation type) 05-20 Wall-mounted/embedded type | fire alarm single edition |
| RPV-AAW□Y | P-type Class 1 receiver (accumulation type) 05-20 Wall-mounted/surface-mounted type with automatic test function | fire alarm single edition |
| RPV-AAU□Y | P-type Class 1 receiver (accumulation type) 05-20 Wall-mounted/surface-mounted type with automatic test function | fire alarm single edition |
| HAV-AAW□ | P-type Class 1 receiver (accumulation type) 10-20 Wall-mounted/surface-mounted | Composite board |
| HAV-AAU□ | P-type Class 1 receiver (accumulation type) 10-20 Wall-mounted/embedded type | Composite board |
| HAV-AAW□Y | P-type Class 1 receiver (accumulation type) 10-20, wall-mounted/surface-mounted, with automatic test function | Composite board |
| HAV-AAU□Y | P-type Class 1 receiver (accumulation type) 10-20, wall-mounted/flush-mounted, with automatic test function | Composite board |
| HAV-EAW□ | P-type Class 2 receiver (accumulation type) 05 (04), 10 (05) Wall-mounted/surface-mounted | Composite board |
| HAV-EAU□ | P-type Class 2 receiver (accumulation type) 05 (04), 10 (05) Wall-mounted/embedded type | Composite board |
| RCV-AAW□ | Interlocking controller (accumulation type) 05-20 Wall-mounted type/Exposed type | Smoke prevention single panel |
| RCV-AAU□ | Interlocking controller (accumulation type) 05-20 Wall-mounted type/Exposed type | Smoke prevention single panel |
