1. Production history (days) (period)

Production history for each line

■ Check production results by date (period)

• Create daily report data, check results by product number, check totals for all product numbers, etc.
• Data can be narrowed down by product number.
• Any period can be specified (weekly report, monthly report, etc.)

2. Suspension history

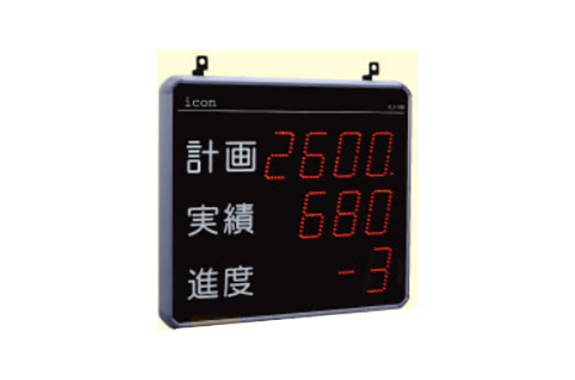

Record history by inputting the stop terminal on the display unit [Stop/Stop②]

■ Record and check setups, abnormal shutdowns, planned shutdowns, etc.

• Two types of input information can be managed separately.
• Record and confirm the date and time when the input occurred and ended.

■Product Number Master

Registration items

• Product number: up to 20 characters
• Product name: Up to 40 characters (half-width) or 20 characters (full-width)
• Setting takt time: 0.1 to 999.9 seconds / 1 to 9999 seconds / 0.01 to 99.99 seconds /
  0.1 to 999.9 minutes
• Prescale 1 to 999 times (or 1/1 to 1/999 times)
• Masking Time
• Alarm display (lag/advance, operating rate lower/upper limit)

■Reduces the effort required for plan registration. Also useful for history management.

• There is no limit to the number of product numbers that can be registered.
• It is possible to narrow down data for specific product numbers from historical information.

■Working hours master

Registration items

• Working hours No.
• Working hours name
• All Clear Time 1
• Direct clear time 2
• Direct clear time 3
• Start/End time (Max 16 divisions)

■To collect information more accurately.

• Data collection distinguishes between working hours and break times.
• There are a total of 99 working hours that can be registered.
• Working hours are displayed in a graph to prevent incorrect registration.

■ Record and check progress data during production

• Record data at regular intervals, such as every 5 minutes or every hour.
• You can also specify any time to record.
• Historical data can be converted into various graphs and viewed.
