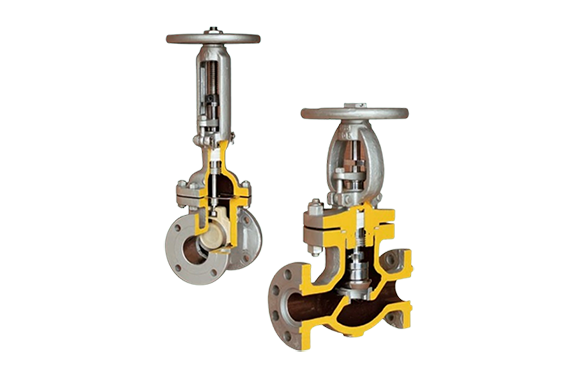

Ishida 300LB/600LB Gate Valves
Manufacturer: Ishida Valve Mfg Co.,Ltd
Model: 300LB/600LB
MATERIAL
No. | NAME OF PART | JIS | ASTEM |
| 1 | BODY | S25C | A105 |
| 2 | BODY SEAT | S25C | CARBON STEEL |
| 3 | DISC | S25C | CARBON STEEL |
| 4 | STEM | SUS403 | 13%Cr S.S |
| 5 | GASKET | ||
| 6 | BONNET | S25C | A105 |
| 7 | STUD BOLT | SNB7 | A193-B7 |
| 8 | NUT | S45C | A194-2H |
| 9 | GLAND PACKING | ||
| 10 | GLAND | SUS420J2 | 13%Cr S.S |
| 11 | GLAND FLANGE | SCPH2 | CARBON STEEL |
| 12 | GLAND EYE BOLT | SNB7 | A193-B7 |
| 13 | NUT | S45C | A194-2H |
| 14 | SPLIT PIN | SWRM3 | CARBON STEEL |
| 15 | YOKE | SCPH2 | CARBON STEEL |
| 16 | YOKE BUSH | NiBC | Ni-Cu ALLOY |
| 17 | SET SCREW | SUS304 | 304 S.S |
| 18 | HAND WHEEL | FCD45 | DUCTILE IRON |
| 19 | NAME PLATE | AL.P | ALUMINIUM |
| 20 | WASHER | SS41 | CARBON STEEL |
21 | LOCK NUT | SS41 | CARBON STEEL |
22 | PACKING WASHER | SUS420J2 | 13%Cr S.S |
23 | CLAMPING DEVICE | SUS420J2 | 13%Cr S.S |
24 | KNOCK PIN | SUS304 | 304 S.S |

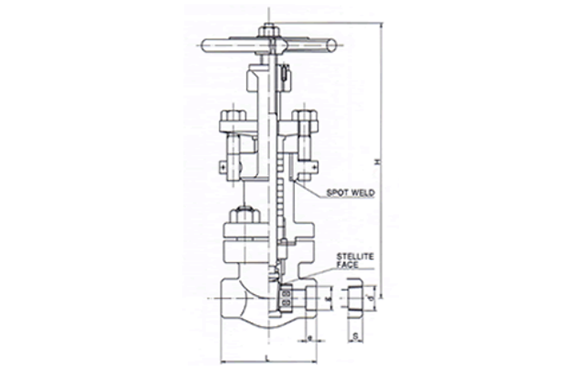

WEIGHT AND DIMENSIONS
SOCKET WELDING ENDS（SW） 300Lb（20K） | |||||
SIZE | DIMENSIONS（mm） | NET WEIGHTS（kg） | |||
| L | g | e | H | ||
1/2″ | 79 | 22.2 | 9.6 | 280 | 5.3 |
3/4″ | 92 | 27.7 | 12.7 | 280 | 5.5 |
1″ | 111 | 34.5 | 12.7 | 308 | 7.2 |
1 1/2″ | 152 | 49.1 | 12.7 | 374 | 13.0 |
SOCKET WELDING ENDS（SW） 600Lb（40k） | |||||
SIZE | DIMENSIONS（mm） | NET WEIGHTS（kg） | |||
| L | g | e | H | ||
1/2″ | 92 | 22.2 | 9.6 | 280 | 5.5 |
3/4″ | 111 | 27.7 | 12.7 | 308 | 7.2 |
1″ | 127 | 34.5 | 12.7 | 340 | 10.4 |
1 1/2″ | 171 | 49.1 | 12.7 | 395 | 16.9 |
SCREWED ENDS（S） 300Lb（20K） | |||||
SIZE | DIMENSIONS（mm） | NET WEIGHTS（kg） | |||
| L | g | e | H | ||
1/2″ | 79 | PT1/2 | 12 | 280 | 5.3 |
3/4″ | 92 | PT3/4 | 14 | 280 | 5.5 |
1″ | 111 | PT1 | 16 | 308 | 7.2 |
1 1/2″ | 152 | PT1 1/2 | 18 | 374 | 13.0 |
SCREWED ENDS（S） 600Lb（40k） | |||||
SIZE | DIMENSIONS（mm） | NET WEIGHTS（kg） | |||
| L | g | e | H | ||
1/2″ | 92 | PT1/2 | 12 | 280 | 5.5 |
3/4″ | 111 | PT3/4 | 14 | 308 | 7.2 |
1″ | 127 | PT1 | 16 | 340 | 10.4 |
1 1/2″ | 171 | PT1 1/2 | 18 | 395 | 16.9 |
