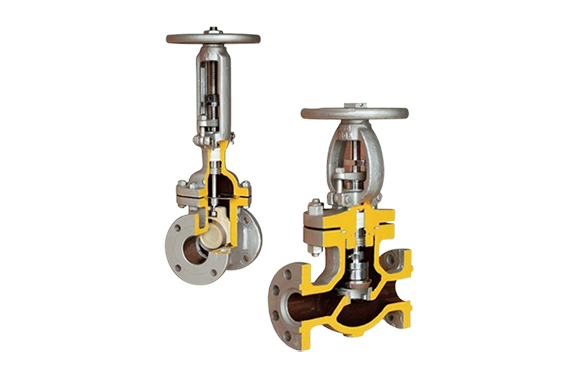

Ishida 300LB Twin Pack Valves Forged Steel Flanged Ends
Manufacturer: Ishida Valve Mfg Co.,Ltd
Model: 300LB
MATERIAL
No. | NAME OF PART | JIS | ASTEM |
1 | BODY | S25C | CARBON STEEL |
2 | BODY SEAT RING | R-MONEL | CARBON STEEL |
3 | DISC | SUS316 | 316 S.S |
4 | STEM | SUS304 | 304 S.S |
5 | BONNET BUSH | SUS304 | 304 S.S |
6 | BONNET | S25C | CARBON STEEL |
7 | YOKE | SCPH2 | CARBON STEEL |
8 | BONNET GASKET | PILLER #4400 | |
9 | BONNET BOLT | SUS304 | 304 S.S |
10 | BONNET BOLT NUT | SUS304 | 304 S.S |
11 | GLAND PACKING | PILLER #4460 | |
12 | GLAND PACKING | PILLER #4533+#4513 | |
13 | PACKING WASHER | SUS304 | 304 S.S |
14 | GLAND | SUS304 | 304 S.S |
15 | GLAND FLANGE | SUS403 | 13%Cr S.S |
16 | GLAND EYE BOLT | SUS304 | 304 S.S |
17 | GLAND EYE BOLT NUT | SUS304 | 304 S.S |
18 | COTTER PIN | SUS304 | 304 S.S |
19 | YOKE SLEEVE | Ni-RESIST | A439-D2 |
20 | SLEEVE WASHER | SUS304 | 304 S.S |
21 | HAND WHEEL | FCD45 | DUCTILE IRON |
22 | LOCK NUT | S25C | CARBON STEEL |
23 | SET BOLT | SUS304 | 304 S.S |
24 | NAME PLATE | SUS304 | 304 S.S |
25 | SET BOLT | SUS304 | 304 S.S |
26 | FLANG | S25C | CARBON STEEL |
27 | KNOCK PIN | SUS304 | 304 S.S |
28 | STOPPER | SUS304 | CARBON STEEL |

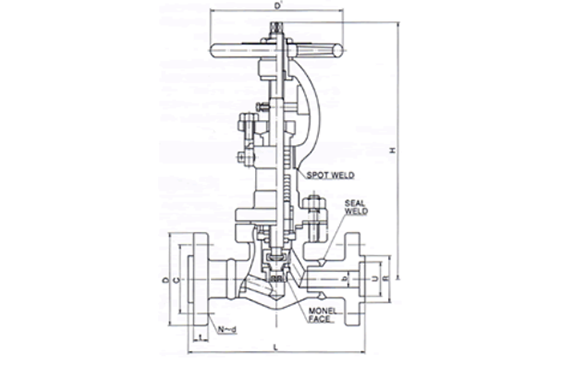

WEIGHT AND DIMENSIONS（mm）
SIZE | L | b | t | D | C | N-d |
1/2″ | 140 | 15 | 14 | 95 | 70 | 4-15 |
3/4″ | 160 | 20 | 16 | 100 | 75 | 4-15 |
1″ | 180 | 25 | 16 | 125 | 90 | 4-19 |
1 1/2″ | 240 | 40 | 18 | 140 | 105 | 4-19 |
SIZE | U | R | H OPEN SHUT（APROX） | D1 |
1/2″ | 32 | 42 | 294 / 283 | 140 |
3/4″ | 38 | 50 | 294 / 283 | 140 |
1″ | 45 | 60 | 324 / 314 | 160 |
1 1/2″ | 60 | 75 | 359 / 340 | 180 |
