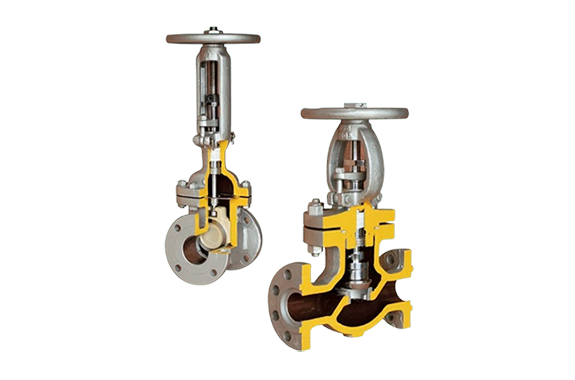

Ishida 600LB Gate Valves
Manufacturer: Ishida Valve Mfg Co.,Ltd
Model: 600LB
MATERIAL
No. | NAME OF PART | MATERIALS | REMARK |
| 1 | BODY | A216-WCB | 13Cr FACE |
| 2 | BODY SEAT RING | ||
| 3 | DISC 4″&UNDER | A182-F6a | |
DISC 5 “&UNDER | A216-WCB | 13Cr FACE | |
4 | DISC STEM RING | A182-F6a | |
5 | STEM | A182-F6a | HARD-Cr,PLATED |
| 6 | BONNET BUSH | A182-F6a | |
| 7 | BONNET | A216-WCB | |
| 8 | BONNET GASKET | SPIRAL-WOUND STAINLESS,GRAFOIL FILLED（V#6592） | |
| 9 | BONNET BOLT | A193-B7 | |
| 10 | BONNET BOLT NUT | A194-2H | |
| 11 | YOKE | A216-WCB | |
| 12 | GLAND | A182-F6a | |
| 13 | GLAND PACKING | GRAPHAITE&CARBON FIBER,PACKING（P#6527+P#6610） | |
| 14 | GLAND FLANGE | A105 | |
| 15 | GLAND EYE BOLT | A193-B7 | |
| 16 | GLAND EYE BOLT NUT | A194-2H | |
| 17 | EYE BOLT PIN | 13%Cr STEEL | |
| 18 | EYE BOLT PIN WASHER | CARBON STEEL | |
| 19 | COTTER PIN | MILD STEEL | |
| 20 | YOKE SLEEVE | AL-BRONZE | |
21 | SLEEVE NUT | CARBON STEEL | |
22 | HAND WHEEL | DUCTILE IRON | |
23 | LOCK NUT | CARBON STEEL | |
24 | SET SCREW | TYPE304 | |
25 | NAME PLATE | ALUMINUM | |
26 | CLUTCH | A182-F6a | |
27 | PACKING WASHER | A182-F6a | |
28 | PACKING WASHER | A182-F6a | |
29 | GRAND PACKING | CARBON FIBER,PAKING（P#6527） | |
30 | KNOCK PIN | TYPE304 | |
31 | STOPPER | CARBON STEEL | |
32 | LOCK NUT | CARBON STEEL | |
33 | KNOCK PIN | TYPE304 | |
34 | GREASE NIPPLE | BRASS | 6″&OVER |
35 | STOPPER | CARBON STEEL | 6″&OVER |
36 | SET PIN | MILD STEEL | 6″&OVER |
37 | THRUST BEARING | STEEL | |

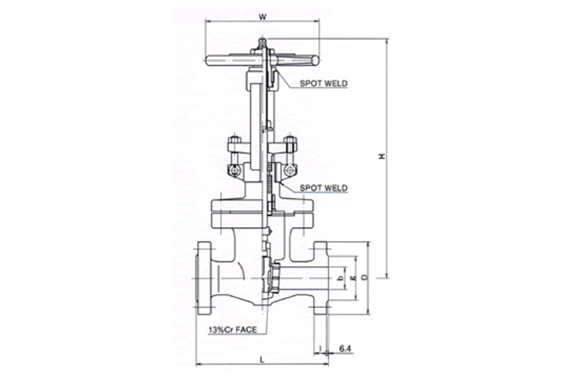

WEIGHT AND DIMENSIONS（mm）
SIZE | L | b | t | D | g | C | N-d |
4″ | 432 | 102 | 38.1 | 273 | 157 | 216 | 8-25 |
6″ | 559 | 152 | 47.8 | 356 | 216 | 292 | 12-29 |
8″ | 660 | 200 | 55.7 | 419 | 270 | 349 | 12-32 |
SIZE | H | W | Q’TY | |
SHUT | OPEN | |||
4″ | 780 | 897 | 355 | |
6″ | 1067 | 1230 | 500 | |
8″ | ||||
