Ishida Valve Mfg Co.,Ltd

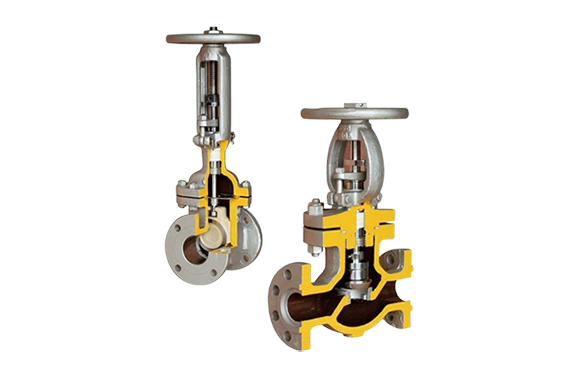

Ishida 600LB Globe Valves
Manufacturer: Ishida Valve Mfg Co.,Ltd
Model: 600LB
MATERIAL
No. | NAME OF PART | MATERIALS | REMARK |
1 | BODY | A216-WCB | 13Cr FACE |
2 | |||
3 | DISC | A182-F6a | |
4 | DISC STEM RING | A182-F6a | |
5 | STEM | A182-F6a | HARD-Cr,PLATED |
6 | BONNET | A216-WCB | |
7 | BONNET BOLT | A193-B7 | |
8 | BONNET BOLT NUT | A194-2H | |
9 | BONNET GASKET | SPIRAL-WOUND STAINLESS,GRAFOIL FILLED（V#6590） | |
10 | GLAND PACKING | GRAPHAITE&CARBON FIBER,PACKING（P#6527+P#6610） | |
11 | PACKING WASHER | A182-F6a | |
12 | GLAND | A182-F6a | |
13 | GLAND FLANGE | A105 | |
14 | GLAND EYE BOLT | A193-B7 | |
15 | GLAND EYE BOLT NUT | A194-2H | |
16 | EYE BOLT PIN | 13%Cr STEEL | |
17 | EYE BOLT PIN WASHER | CARBON STEEL | |
18 | COTTER PIN | MILD STEEL | |
19 | |||
20 | SET SCREW | TYPE304 | |
21 | BUSHING | AL-BLONZE | |
22 | HAND WHEEL | DUCTILE IRON | |
23 | WASHER | CARBON STEEL | |
24 | LOCK NUT | CARBON STEEL | |
25 | |||
26 | |||
27 | BONNET BUSH | A182-F6a | |
28 | PACKING WASHER | A182-F6a | |
29 | GRAND PACKING | CARBON FIBER,PAKING（P#6527） | |
30 | STOPPER | CARBON STEEL | |
31 | KNOCK PIN | TYPE304 | |
32 | NAME PLATE | ALUMINUM | |

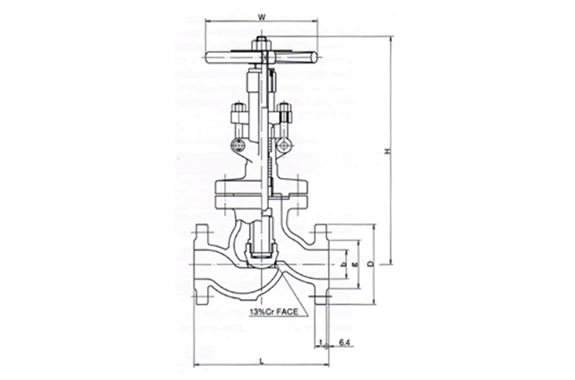

WEIGHT AND DIMENSIONS（mm）
SIZE | L | b | t | D | g | C | N-d |
1 1/2″ | 241 | 38 | 22.4 | 15 | 73 | 114.5 | 4-22 |
2″ | 292 | 51 | 25.4 | 165 | 92 | 127.0 | 8-19 |
2 1/2″ | 330 | 64 | 28.5 | 190 | 105 | 149.0 | 8-22 |
3″ | 356 | 76 | 31.8 | 210 | 127 | 168.0 | 8-22 |
SIZE | H | W | Q’TY | |
SHUT | OPEN | |||
1 1/2″ | 420 | 439 | 250 | |
2″ | 433 | 461 | 280 | |
2 1/2″ | 437 | 471 | 280 | |
3″ | 596 | 637 | 355 | |
