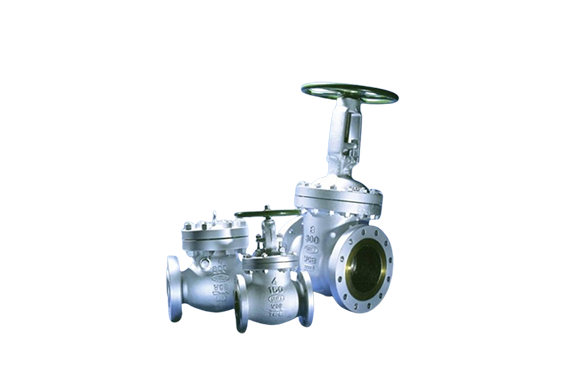

Ishida Asme Class 150 Carbon Steel Gate Valves

Manufacturer: Ishida Valve Mfg Co.,Ltd
Model: Asme Class 150

CAST STEEL GATE VALVES

PRESSURE TEST : As per API 598
SIZE 2″ to 48″
Flanged and Butt weld Ends
Bolted Bonnet, O.S. & Y.
R.F. End Type. Fig. No. C2240
B.W. End Type. Fig. No. C2230

MATERIAL

NAME OF PART	ASTM	JIS
BODY	A216 WCB	SCPH2
BODY SEAT RING	*A105	*SFVC2A
DISC	*A216 WCB	*SCPH2
STEM	A182 F6a	SUS403
BONNET GASKET	REIN FORCED GRAPHITE
BONNET	A216 WCB	SCPH2
BONNET BOLT	A193 B7	SNB7
BONNET BOLT NUT	A194 2H	S45C
BONNET BUSH	A276 420	SUS420J2
GLAND PACKING	FLEXIBLE GRAPHITE
GLAND	A276 420	SUS420J2
GLAND FLANGE	A105	SFVC2A
GLAND EYE BOLT	A193 B7	SNB7
GL. EYE BOLT NUT	A194 2H	S45C
YOKE	A216 WCB	SCPH2
YOKE SLEEVE	A439 D2	FCDA NiCr
SLEEVE NUT	A576 1025	S25C
HAND WHEEL	A536	FCD450
LOCK NUT	A36	SS400
NAME PLATE	B209M	ALP

*BODY SEAT RING : STELLITE FACE
*DISC : 13Cr FACE
Note：

Disc of valves 2 1⁄2inch and under are solid wedge. 3 inch and over are flexible wedge.
Valves 12 inch and over have thrust bearing.
Operation of valves 18 inch and over have bevel gear unit.

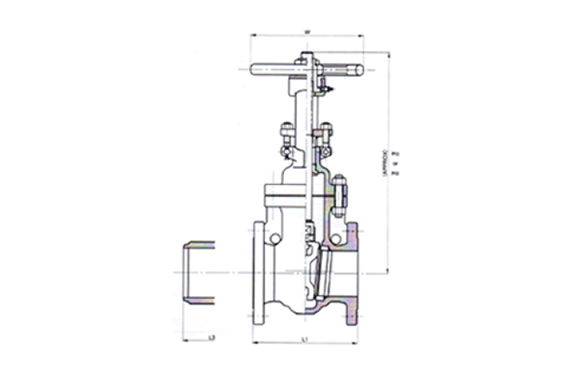

WEIGHT AND DIMENSIONS

ValveSize	End to End(mm)		Center to top(mm)		Weight Approx.(kg)
	R.F.	B.W.	OPEN	Close	Weight Approx.(kg)
	L1	L3	Ho	Hc	R.F.	B.W.
2″	178	216	383	383	20	16
2 1⁄2″	190	241	418	418	26	23
3″	203	283	472	472	35	30
4″	229	305	576	576	55	47
6″	267	403	801	801	87	74
8″	292	418	1012	1012	150	119
10″	330	457	1232	1232	279	195
12″	356	502	1427	1427	380	270
14″	384	572	1550	1550	475	400
16″	406	610	1734	1734	575	467
18″	432	660	1928	1928	770	655
20″	457	711	2167	2167	820	800
24″	508	813	2533	2533	1383	1280
26″	559	864	2818	2818
28″	610	914	3078	3078
30″	610	914	3202	3202
32″	660	965	3465	3465
34″	711	1016	3480	3480
36″	559	864	2818	2818
38″	610	914	3078	3078
40″	610	914	3202	3202
42″	660	965	3465	3465
48″	711	1016	3480	3480
