Ishida Valve Mfg Co.,Ltd

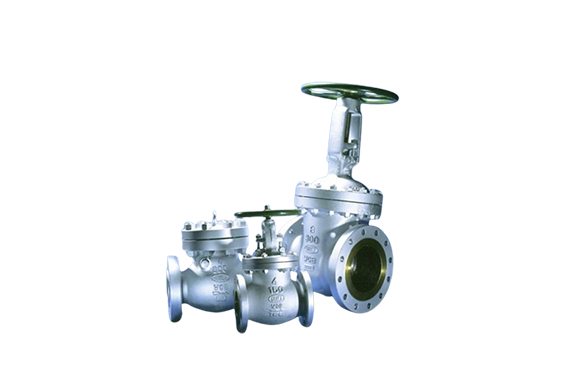

Ishida Asme Class 150 Cast Steel Globe Valves
Manufacturer: Ishida Valve Mfg Co.,Ltd
Model: Asme Class 150
CAST STEEL GLOBE VALVES
PRESSURE TEST : As per API 598
“SIZE 2″ to 20”
Flanged and Butt weld Ends
Bolted Bonnet, O.S. & Y.
R.F. End Type. Fig. No C1240
B.W. End Type. Fig. No C1230
MATERIAL
NAME OF PART | ASTM | JIS |
BODY | A216 WCB | SCPH2 |
BODY SEAT RING | *A105 | *SFVC2A |
DISC | *A276 420 | SUS420J2 |
STEM | A182 F6a | SUS403 |
BONNET GASKET | SPIRAL WOUND GRAPHOIL | |
BONNET | A216 WCB | SCPH2 |
BONNET BOLT | A193 B7 | SNB7 |
BONNET BOLT NUT | A194 2H | S45C |
BONNET BUSH | A276 420 | SUS420J2 |
GLAND PACKING | FLEXIBLE GRAPHITE | |
GLAND | A276 420 | SUS420J2 |
GLAND FLANGE | A105 | SFVC2A |
GLAND EYE BOLT | A193 B7 | SNB7 |
GL. EYE BOLT NUT | A194 2H | S45C |
YOKE SLEEVE | A439 D2 | FCDA NiCr |
HAND WHEEL | A536 | FCD450 |
LOCK NUT | A36 | SS400 |
NAME PLATE | B209M | ALP |
*BODY SEAT RING : STELLITE FACE
*DISC : 13Cr FACE
Note： Stem of valves 10 inch and over are non-rotating type

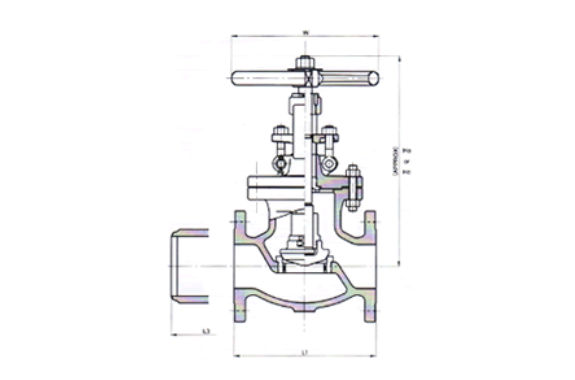

WEIGHT AND DIMENSIONS
ValveSize | End to End(mm) | Center to top(mm) | Diam. of Handwheel(mm) | Weight Approx.(kg) | |||
R.F. | B.W. | OPEN | Close | ||||
L1 | L3 | Ho | Hc | W | R.F. | B.W. | |
2″ | 203 | 203 | 338 | 320 | 200 | 20.5 | 19 |
2 1⁄2″ | 216 | 216 | 347 | 325 | 200 | 33.0 | 30 |
3″ | 241 | 241 | 388 | 362 | 250 | 34.5 | 33 |
4″ | 292 | 292 | 424 | 389 | 280 | 52 | 49 |
6″ | 406 | 406 | 485 | 438 | 355 | 94 | 90 |
8″ | 495 | 495 | 598 | 598 | 450 | 150 | 173 |
10″ | 622 | 622 | 698 | 623 | 450 | 305 | 275 |
12″ | 698 | 698 | 837 | 752 | 560 | 476 | 430 |
14″ | 787 | 787 | 1031 | 926 | 685 | 620 | 560 |
16″ | 914 | 914 | 1121 | 1101 | 685 | 766 | 690 |
18″ | 978 | 978 | 1200 | 1200 | 610 | 1000 | 690 |
20″ | 978 | 978 | 1250 | 1250 | 610 | 1300 | 1170 |
