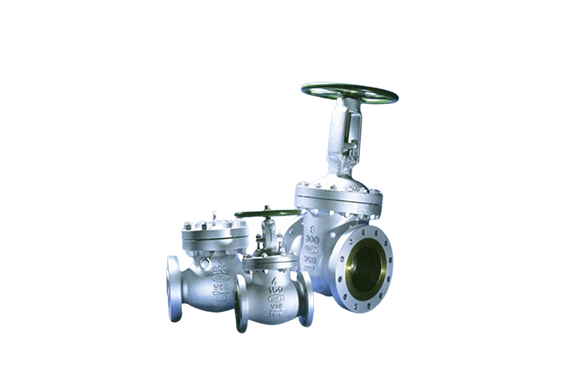

Ishida Asme Class 600 Carbon Steel Gate Valves

Manufacturer: Ishida Valve Mfg Co.,Ltd
Model: Asme Class 600

CAST STEEL GATE VALVES

PRESSURE TEST : As per API 598

SIZE 2″ to 26″
Flanged and Butt weld Ends
Bolted Bonnet, O.S.&Y.
R.F. End Type. Fig. No. C2640
B.J. End Type. Fig. No. C2670
B.W. End Type. Fig. No. C2630 600

MATERIAL

NAME OF PART	ASTM	JIS
BODY	A216 WCB	SCPH2
BODY SEAT RING	*A105	*SFVC2A
DISC	*A216 WCB	*SCPH2
STEM	A182 F6a	SUS403
BONNET GASKET	REIN FORCED GRAPHITE
BONNET	A216 WCB	SCPH2
BONNET BOLT	A193 B7	SNB7
BONNET BOLT NUT	A194 2H	S45C
BONNET BUSH	A276 420	SUS420J2
LANTERN RING	A276 420	SUS420J2
GLAND PACKING	FLEXIBLE GRAPHITE
GLAND	A276 420	SUS420J2
GLAND FLANGE	A105	SFVC2A
GLAND EYE BOLT	A193 B7	SNB7
GL. EYE BOLT NUT	A194 2H	S45C
YOKE	A216 WCB	SCPH2
YOKE SLEEVE	A439 D2	FCDA NiCr
SLEEVE NUT	A576 1025	S25C
HAND WHEEL	A536	FCD450
LOCK NUT	A36	SS400
NAME PLATE	B209M	ALP

*BODY SEAT RING : STELLITE FACE
*DISC : 13Cr FACE
Note：
Disc of valves 2 1⁄2inch and under are solid wedge. 3 inch and over are flexible wedge.
Valves 6 inch and over have thrust bearing.
Operation of valves 12 inch and over have bevel gear unit.

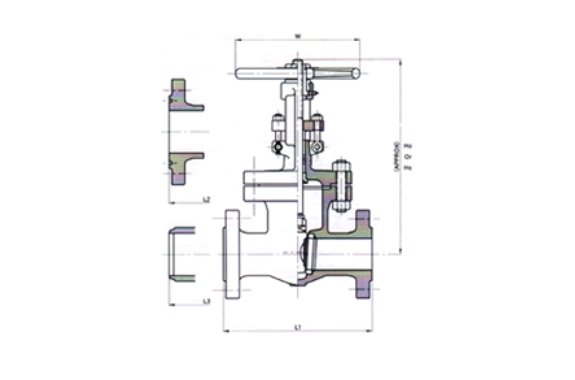

WEIGHT AND DIMENSIONS

ValveSize	End to End(mm)			Center to top(mm)		Diam. of Handwheel(mm)	Weight Approx.(kg)
	R.F.	R.J.	B.W.	OPEN	Close	Diam. of Handwheel(mm)	Weight Approx.(kg)
	L1	L2	L3	Ho	Hc	W	R.F.	R.J.	B.W.
2″	292	295	292	473	414	250	46	48.5	45
2 1⁄2″	330	333	330	505	433	250	63	64	56
3″	356	359	356	555	471	300	75	78	67
4″	432	435	432	692	580	355	125	140	110
6″	559	562	559	1006	843	500	285	285	208
8″	660	664	660	1188	973	600	475	475	385
10″	787	791	787	1402	1136	685	757	757	610
12″	838	841	838	1633	1633	457	1015	1015	840
14″	889	892	889	1772	1722	610	1400	1400	1150
16″	991	994	991	2038	2038	610	1710	1710	1530
18″	1092	1095	1092	2218	2218	610	2210	2210	2000
20″	1194	1200	1194	2392	2392	610	3220	3220	2600
24″	1397	1407	1397	2822	2822	760	4250	4250	4100
26″	1448	1458	1448	3050	3050	760
