Ishida Asme Class 600 Cast Steel Globe Valves

Manufacturer: Ishida Valve Mfg Co.,Ltd
Model: Asme Class 600

CAST STEEL GLOBE VALVES

PRESSURE TEST : As per API 598
“SIZE 2″ to 16”
Flanged and Butt weld Ends
Bolted Bonnet, O.S. & Y.
R.F. End Type. Fig. No C1640
R.J. End Type. Fig. No C1670
B.W. End Type. Fig. No C1630 600

MATERIAL

NAME OF PART	ASTM	JIS
BODY	A216 WCB	SCPH2
BODY SEAT RING	*A105	*SFVC2A
DISC STEM RING	*A276 420	SUS420J2
DISC	*A276 420	SUS420J2
STEM	A182 F6a	SUS403
BONNET GASKET	SPIRAL WOUND GRAPHOIL
BONNET	A216 WCB	SCPH2
BONNET BOLT	A193 B7	SNB7
BONNET BOLT NUT	A194 2H	S45C
BONNET BUSH	A276 420	SUS420J2
LANTERN RING	A276 420	SUS420J2
GLAND PACKING	FLEXIBLE GRAPHITE
GLAND	A276 420	SUS420J2
GLAND FLANGE	A105	SFVC2A
GLAND EYE BOLT	A193 B7	SNB7
GL. EYE BOLT NUT	A194 2H	S45C
YOKE BUSH	A439 D2	FCDA NiCr
HAND WHEEL	A536	FCD450
LOCK NUT	A36	SS400
NAME PLATE	B209M	ALP

*BODY SEAT RING : STELLITE FACE

*DISC : 8 INCH AND OVER ARE WCB WITH／13Cr FACE

Note： Stem of valves 8 inch and over are non-rotating type

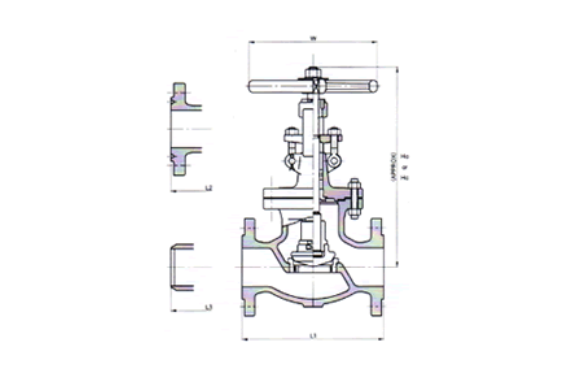

WEIGHT AND DIMENSIONS

ValveSize	End to End（mm）			Center to top（mm）		Diam. of Handwheel（mm）	Weight Approx.（kg）
	R.F.	R.J.	B.W.	OPEN	Close	Diam. of Handwheel（mm）	Weight Approx.（kg）
	L1	L2	L3	Ho	Hc	W	R.F.	R.J.	B.W.
2″	292	295	292	493	435	280	45	45.5	36
2 1⁄2″	330	333	330	469	435	280	60	65	47
3″	356	359	356	630	589	355	83	83	58
4″	432	435	432	704	654	450	150	155	114
6″	559	562	559	852	792	560	327	327	258
8″	660	664	660	1072	997	685	552	520	460
10″	787	791	787	1100	1000	760	910	910	720
12″	838	841	838	1300	1300	610	1150	1150	850
14″	889	892	889	1400	1400	610	1600	1600	1400
16″	991	994	991	1500	1500	610	2160	2160	1900
