I.T.O Corporation

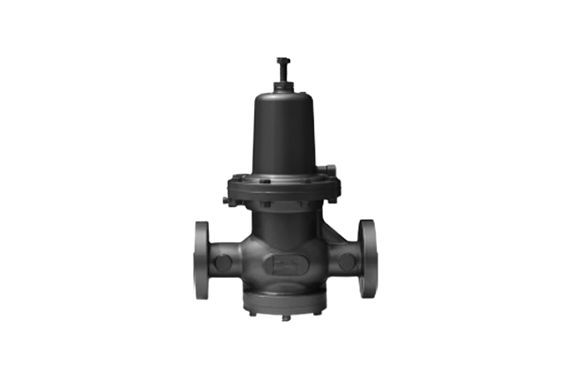

ITO NBG Range AA/ AB Governor
Manufacturer: I.T.O Corporation
Model: NBG Range
AA Governor
Incorporated: Strainer
- The NBG-50-MA range is a direct-operated governor from Medium Pressure A to Medium Pressure A.
- The NBG-50MA with a higher outlet capability of 0.30~0.55 MPa is newly added to our product line. This product can correspond to the co-generation system incorporating a 2000~5000 kW gas engine, which are used in factories or large-scale commercial use, such as hospitals and hotels.
Specifications

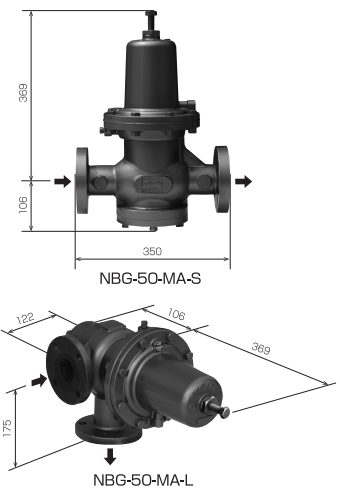

| Model | NBG-50-MA-S | NBG-50-MA-L | |
|---|---|---|---|
| Type | Straight Type | Angle Type | |
| Maximum Flow Rate(Nm³/h) | 1600 | ||
| Inlet Pressure(MPa) | 0.70~0.99 | ||
| Outlet Pressure(MPa) | 0.30~0.55 | ||
| Lockup Pressure(MPa) | ≤Set Point+0.05 | ||
| Connection | JIS 10K 50A Flange (FF) | ||
| Vent Connection | Rc1/4 | ||
| Strainer Mesh Gauge | 100 Mesh*1 | ||
*1 The strainer with 200 mesh is also available.
AB Governor
Incorporated: AR-OPSO*, Strainer. (*NBG-50H only)
- The NBG range is a direct-operated governor from Medium Pressure A to Medium Pressure B, which provides outstanding quick response and easy maintenance.
- The NBG-50 incorporates the ITO balancing piston system, which minimises any outlet pressure fluctuations caused by differing inlet pressures. This system allows the NBG range to give accurate and stable pressure control.
- Since this model has the simple structure of a direct-operated regulator, it gives quick responses and is easy to handle and maintain.
Specifications
| Model | NBG-50-S | NBG-50-L | NBG-50H-S | NBG-50H-L | |
|---|---|---|---|---|---|
| Type | Straight Type | Angle Type | Straight Type | Angle Type | |
| Maximum Flow Rate(Nm³/h) | 1000 | ||||
| Inlet Pressure(MPa) | 0.30~0.99 | ||||
| Outlet Pressure(MPa) | 0.02~0.30*2 | ||||
| Lockup Pressure(MPa) | ≤Set Point × 1.3 (Minimum: Set Point+0.012) | ≤Set Point × 1.2 (Minimum: Set Point+0.012) | |||
| Auto-Reset OPSO | Working Pressure | ≤Lockup Pressure+0.03MPa | |||
| Reset Method | Resets automatically after outlet pressure resumes its normal range. | ||||
| Connection | JIS 10K 50A Flange (FF) | ||||
| Vent Connection | Rc1/4 | ||||
| Strainer Mesh Gauge | 100 Mesh*3 | ||||
*2 Interchangeable springs are available.
*3 The strainer with 200 mesh is also available.
*NBG-50H range requires 0.1MPa or more differential pressure between inlet and outlet.
Interchangeable Spring Selection
| No. | ⑤ | ① | ② | ②+④ | ③+④ | ⑥+⑦ |
|---|---|---|---|---|---|---|
| Colour | Green | Red | Blue | Blue+Black | Yellow+Black | White+White |
| Set Point Range(MPa) | 0.02~0.03 | 0.03~0.06 | 0.06~0.10 | 0.10~0.15 | 0.15~0.20 | 0.20~0.30 |
shows the standard spring.

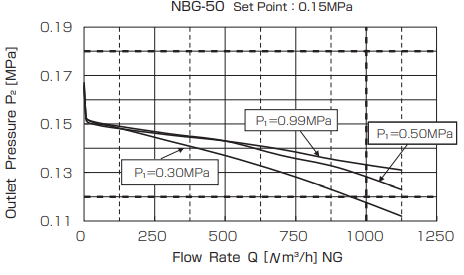

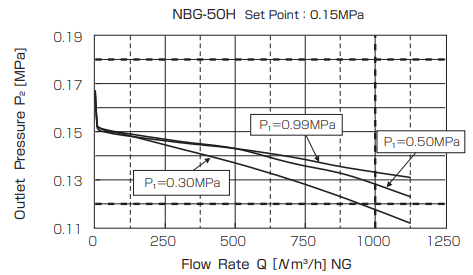

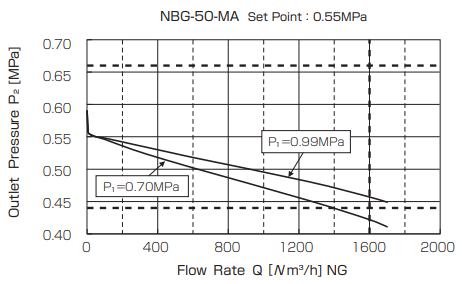

| Flow Rate |
|---|
 |
 |
 |
