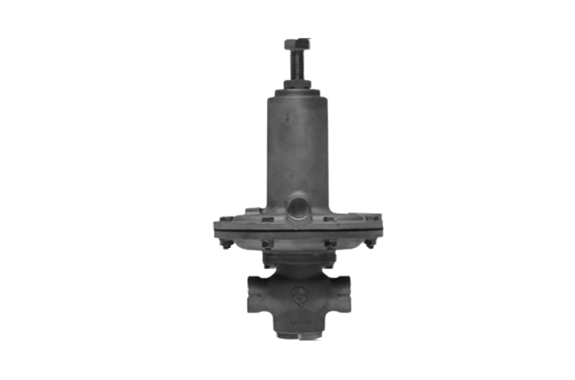

ITO AC/ AM Range Stainless Steel Regulator

Manufacturer: I.T.O Corporation
Model: AC/ AM Range

Incorporated: Strainer*
*AM-150 and AM-150F only

Regulators with key components manufactured from stainless steel for use with various fluids such as a compressed gas including ammonia, nitrogen, or hydrogen.

Specifications

ModelAM-150AM-150FAC-15
Maximum Flow Rate28 Nm³/h19 Nm³/h
Inlet Pressure0.10～1.80 MPa0.07～0.15 MPa
Outlet Pressure0.03～0.30 MPa *10.50～15.0 kPa *1
Lockup Pressure≤0.095 MPa≤3.50 kPa
Safety Relief ValveN/AWorking Pressure : 7±1.4 kPa
ConnectionRc 1/2JIS 20K 15A FlangeRc 1/2
Vent ConnectionRc 1/4
Strainer Mesh Gauge80 MeshN/A

*1 Interchangeable springs are available.

AM-150 Interchangeable Spring Selection

No.①②③④
Set Point Range (MPa)0.03～0.200.05～0.300.00～0.090.00～0.02

     shows the standard spring.

AC-15 Interchangeable Spring Selection

No.①②③④⑤
Set Point Range (kPa)2.50～4.004.00～10.09.00～15.00.50～1.001.00～3.00

     shows the standard spring.

Flow Rate

REQUEST QUOTATION
