I.T.O Corporation
ITO Accessories And Other Equipment
Manufacturer: I.T.O Corporation

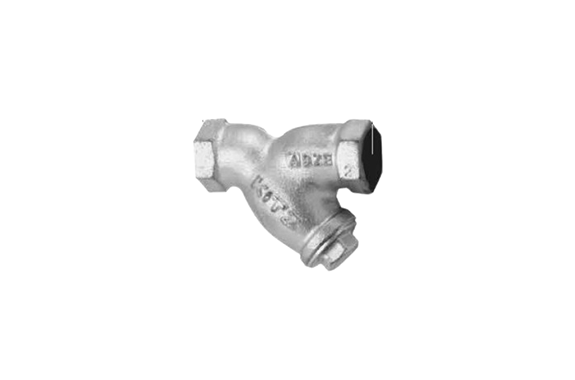

Y-Type Strainers
- Filters any foreign bodies such as pipe scale or rust coming from the upstream pipework.
- Designed so that collected solids can be disposed of and the filter cleaned without having to be removed from the line.
Specifications
| Model | 10FDY | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Connection | Rc1/4 | Rc3/8 | Rc1/2 | Rc3/4 | Rc1 | Rc1 1/4 | Rc1 1/2 | Rc2 | Rc2 1/2 | Rc3 |
| Dimension(a)(mm) | 65 | 70 | 85 | 100 | 115 | 135 | 150 | 180 | 220 | 250 |
*Supplied by ITO.
Specifications
| Model | 10FDYBF | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Connection | JIS 10K Flange(FF) | |||||||||||||
| Connection | 15A | 20A | 25A | 32A | 40A | 50A | 65A | 80A | 100A | 125A | 150A | 200A | 250A | 300A |
| Dimension(a)(mm) | 125 | 140 | 150 | 170 | 190 | 230 | 305 | 360 | 415 | 465 | 515 | 580 | 680 | 800 |
*Supplied by ITO.

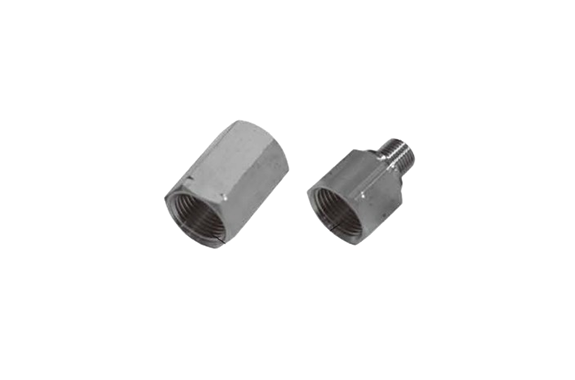

POL Adapters
Male JIS POL x PT thread adapter
| Model | PC-106 | PC-112 | PC-115 |
|---|---|---|---|
| Connection(a) | Rc1/4 | Rc3/8 | Rc1/2 |
| Model | PC-206 | PC-212 | PC-215 | PC-220 |
|---|---|---|---|---|
| Connection(b) | R1/4 | R3/8 | R1/2 | R3/4 |

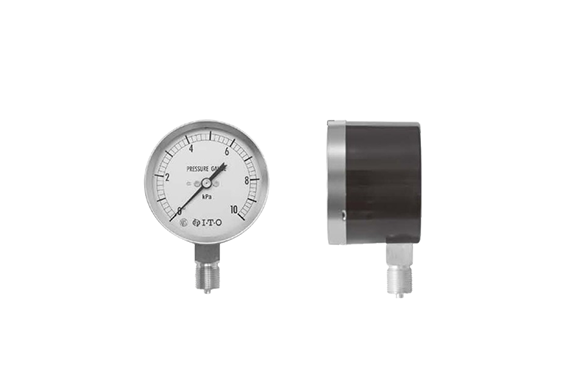

Pressure Gauges
We offer pressure gauges in a wide range.
| Maximum Scale Value |
|---|
| 10.0kPa |
| 20.0kPa |
| 50.0kPa |
| Maximum Scale Value |
|---|
| 0.10MPa |
| 0.20MPa |
| 0.40MPa |
| 1.00MPa |
| 2.00MPa |
| 2.50MPa |
| 3.50MPa |
Cylinder Stands
- Increases the stability of cylinders on poor standings.
- Can be bolted to the ground or use stabilisers incorporated into the base.
- Available in a range of sizes for varying dimensions of cylinders.
