I.T.O Corporation
ITO H-4A-H･H/ I-72/ CM-H/ GMF-H Variable Type Pressure Regulators
Manufacturer: I.T.O Corporation
Model: H-4A-H･H/ I-72/ CM-H/ GMF-H

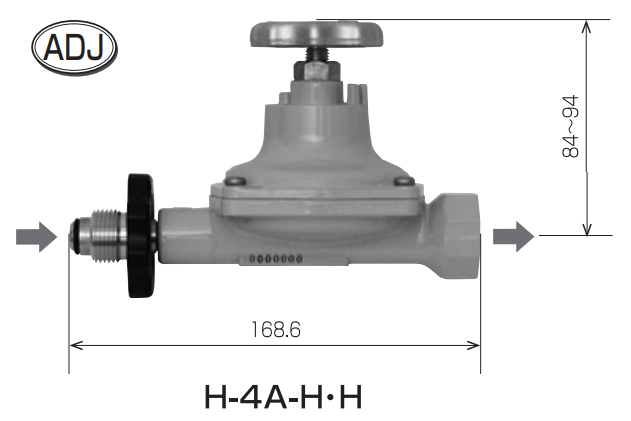

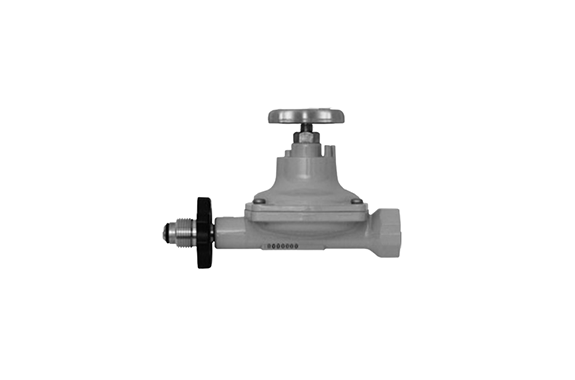

| Model | H-4A-H·H |
|---|---|
| Capacity(Propane) | 4kg/h |
| Inlet Pressure | 0.07~1.56MPa |
| Variable Outlet Pressure Range | 4.50~7.00kPa |
| Outlet Pressure | Set Point±20% kPa |
| Lockup Pressure | ≤Set Point+30% kPa |
| Safety Relief Valve Working Pressure | Set Point +4.30~4.80kPa |
| Inlet Connection | JIS POL with Handwheel |
| Outlet Connection | Rc1/2 |

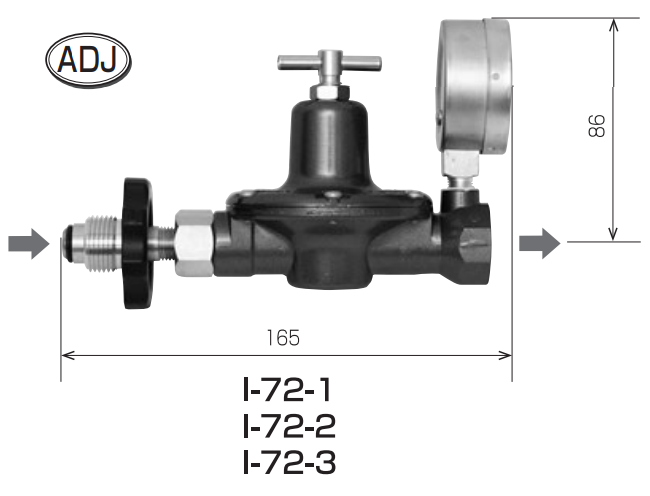

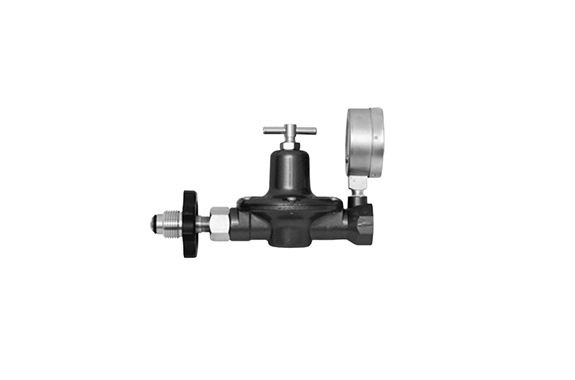

| Model | I-72-1 | I-72-2 | I-72-3 |
|---|---|---|---|
| Capacity(Propane) | 5kg/h | ||
| Inlet Pressure | 0.13~1.56MPa | 0.17~1.56MPa | 0.40~1.56MPa |
| Variable Outlet Pressure Range | 0.01~0.07MPa | 0.01~0.16MPa | 0.01~0.35MPa |
| Outlet Pressure | Set Point±20% MPa | ||
| Lockup Pressure | ≤Set Point+30% MPa | ||
| Inlet Connection | JIS POL with Handwheel | ||
| Outlet Connection | Rc1/2 | ||

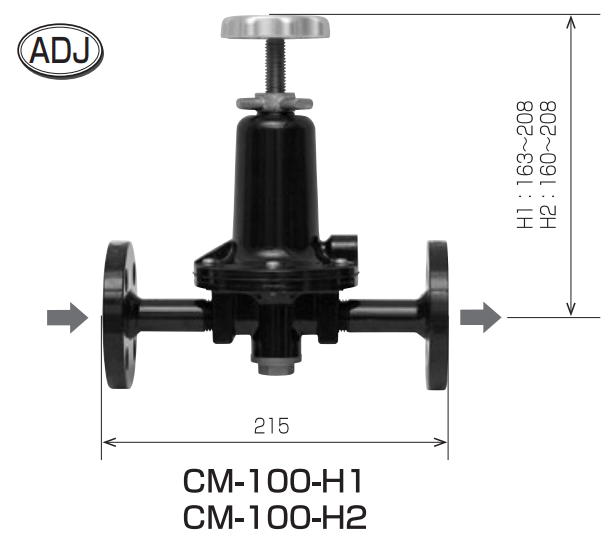

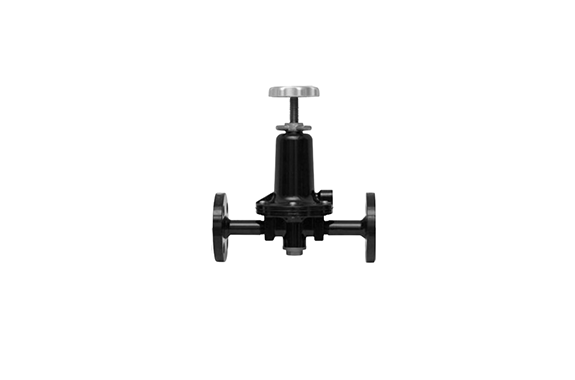

| Model | CM-100-H1 | CM-100-H2 |
|---|---|---|
| Capacity(Propane) | 30kg/h | |
| Inlet Pressure | 0.10~1.56MPa | 0.07~0.40MPa |
| Variable Outlet Pressure Range | 0.03~0.15MPa | 0.00~0.04MPa |
| Outlet Pressure | Set Point±20% MPa | |
| Lockup Pressure | ≤Set Point+30% MPa | |
| Inlet Connection | JIS20K15A Flange | |
| Outlet Connection | JIS10K15A Flange | |

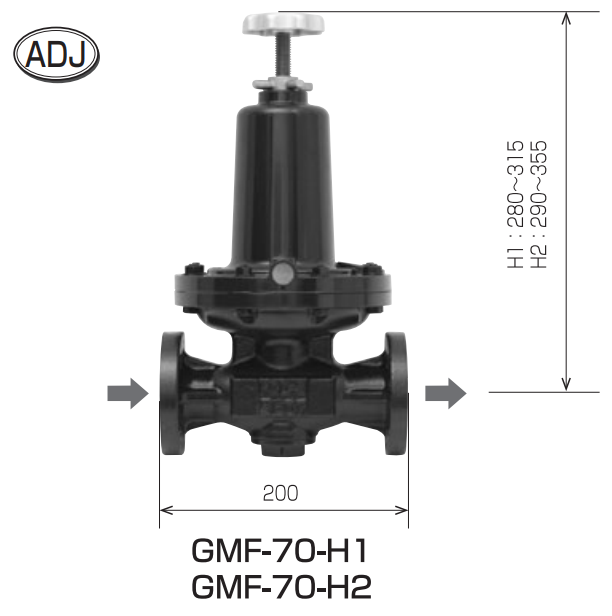

| Model | GMF-70-H1 | GMF-70-H2 |
|---|---|---|
| Capacity(Propane) | 70kg/h | |
| Inlet Pressure | 0.10~1.56MPa | 0.07~0.40MPa |
| Variable Outlet Pressure Range | 0.03~0.15MPa | 0.00~0.04MPa |
| Outlet Pressure | Set Point±20% MPa | |
| Lockup Pressure | ≤Set Point+30% MPa | |
| Inlet Connection | JIS20K20A Flange | |
| Outlet Connection | JIS10K20A Flange | |
