I.T.O Corporation

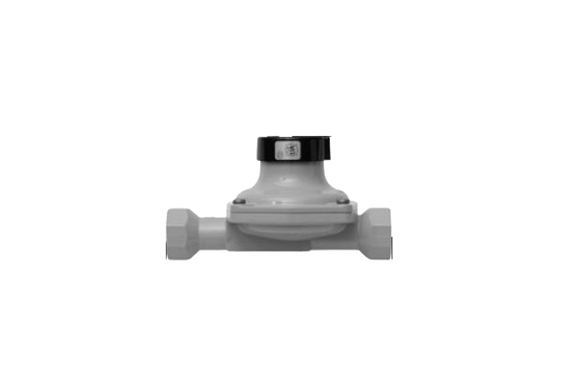

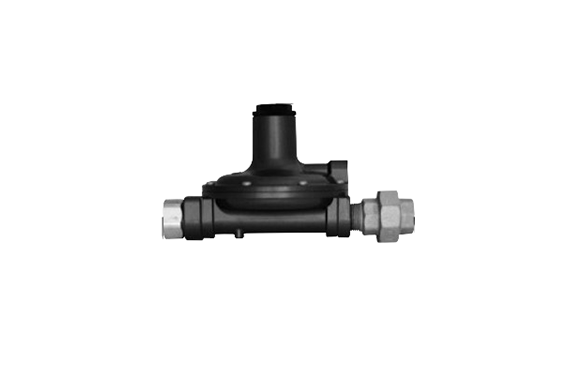

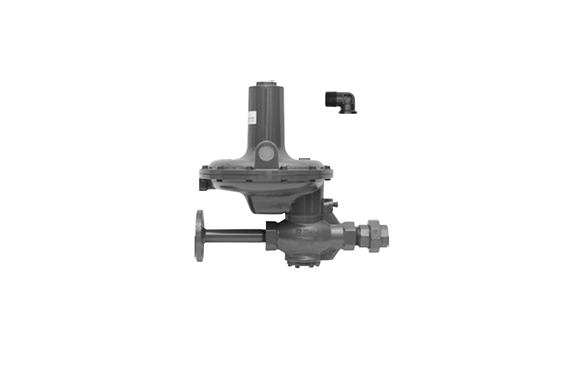

ITO H/ C/ G/ GL/ H-5EX(S) Second Stage Regulators
Manufacturer: I.T.O Corporation
Model: H/ C/ G/ GL/ H-5EX(S)
*Flange gaskets, bolts, nuts and washers are not included.
Range Specification
| Inlet Pressure | 0.025~0.10MPa | Outlet Pressure | 2.30~3.30kPa | Lockup Pressure | ≤3.50kPa | Safety Relief Valve Working Pressure | 5.60~8.40kPa |
|---|
| 4kg/h | 15kg/h | 15kg/h |
|---|---|---|
 |  |  |
| Inlet: Rc1/2 Outlet: Rc1/2 | Inlet: Rc1/2 Outlet: Rc3/4 Union | Inlet: Rc1/2 Outlet: Rc3/4 Ball Valve for Union |
| 30kg/h | 30kg/h | 50kg/h |
 |  |  |
| Inlet: JIS10K15A Flange Outlet: Rc1 Union | Inlet: JIS10K15A Flange Outlet: Rc1 Ball Valve for Union | Inlet: JIS10K25A Flange Outlet: Rc1 1/4 Union |
| 50kg/h | 70kg/h | 70kg/h |
 |  |  |
| Inlet: JIS10K25A Flange Outlet: Rc1 1/4 Ball Valve for Union | Inlet: JIS10K25A Flange Outlet: Rc1 1/4 Union | Inlet: JIS10K25A Flange Outlet: Rc1 1/4 Ball Valve for Union |
| 100kg/h | 100kg/h | 200kg/h |
 |  |  |
| Inlet: JIS10K25A Flange Outlet: Rc1 1/2 Union | Inlet: JIS10K25A Flange Outlet: Rc1 1/2 Ball Valve for Union | Inlet: JIS10K40A Flange Outlet: Rc2 Union |
| 300kg/h | 400kg/h | 500kg/h |
 |  |  |
| Inlet: JIS10K50A Flange Outlet: JIS10K80A Flange | Inlet: JIS10K50A Flange Outlet: JIS10K80A Flange | Inlet: JIS10K50A Flange Outlet: JIS10K80A Flange |
| 6kg/h Convertible to 5.5Nm³/h in NG | Specifications
| ||||||||||||||||||
 | |||||||||||||||||||
