I.T.O Corporation

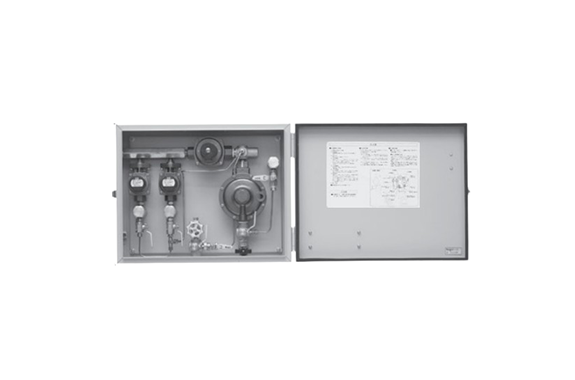

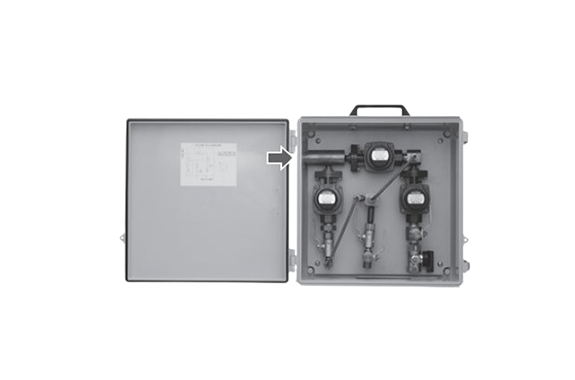

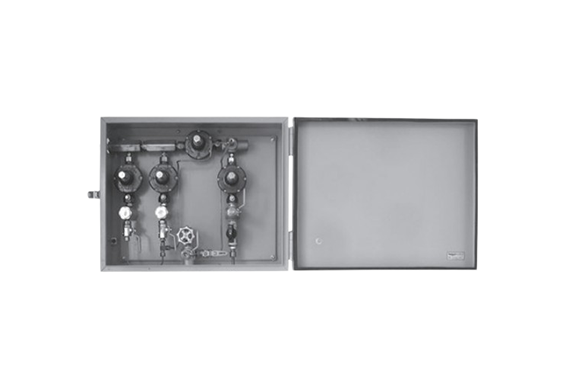

ITO HLB Series Pressure Monitoring Type Gas Leakage Detecting Cabinets
Manufacturer: I.T.O Corporation
Model: HLB Series
 |  |  |
| Model | HLB-3 HLB-3LT | HLB-5 | ||
|---|---|---|---|---|
| Inlet Pressure | 0.025~0.10MPa | |||
| Outlet Pressure | 3.20±0.10kPa | |||
| Capacity(Propane) | 0.2kg/h | |||
| Lockup Pressure | ≤ 3.50kPa | |||
| Minimum Detectable Leak Rate | 3L/h | 5L/h | ||
| Detected Pressure | No Leakage | 8.00±0.50kPa | ||
| Min. Gas Leakage | 6.00±0.25kPa | |||
| 10L/h Gas Leakage | 5.25±0.25kPa | 5.35±0.25kPa | ||
| 18L/h Gas Leakage | 4.40±0.40kPa | 4.60±0.40kPa | ||
| Inlet Connection | Rc1/4 | |||
| Outlet Connection | Rc1/2 | |||
| Auto-Recording Pressure Gauge Connection | G3/8 | |||
| Installation Method | Wall Mounted | |||
| Model | HLB-6M | |
|---|---|---|
| Inlet Pressure | 0.20~0.40MPa | |
| Applicable Outlet Pressure Range | 10.0~150kPa *1 | |
| Capacity(Propane) | 0.2kg/h | |
| Lockup Pressure | ≤ 37.0kPa *2 | |
| Minimum Detectable Leak Rate | 6L/h | |
| Detected Pressure | No Leakage | 180±15.0kPa |
| Min. Gas Leakage | 150±10.0kPa | |
| 18L/h Gas Leakage | 115±10.0kPa | |
| Inlet Connection | Rc1/4 | |
| Outlet Connection | Rc1/2 | |
| Auto-Recording Pressure Gauge Connection | Rc1/4 | |
| Installation Method | Wall Mounted | |
*1 Interchangeable springs are available.
*2 Based on 25.0kPa setting pressure.
Flow Chart of HLB-3,HLB-5
