Manufacturer: I.T.O Corporation
Model: I-72/ CM-H/ GMF-H Range
Incorporated: Strainer

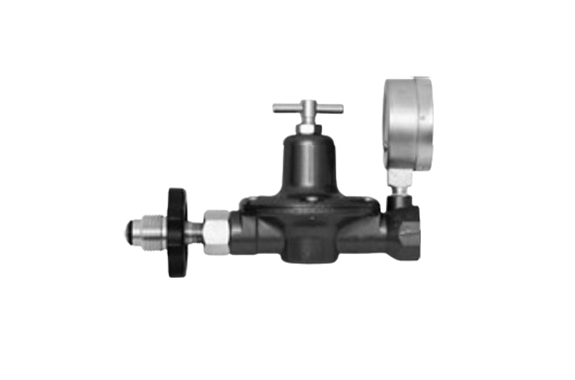

The variable type pressure regulator has an external handle linked to the adjusting screw to make the outlet pressure setting easier without using a wrench or other tools.
Specifications
| I-72-1 | I-72-2 | I-72-3 | CM-100-H1 | CM-100-H2 | GMF-70-H1 | GMF-70-H2 |
|---|
| 0.13～1.56 | 0.17～1.56 | 0.40～1.56 | 0.10～1.56 | 0.07～0.40 | 0.10～1.56 | 0.07～0.40 |
| 0.01～0.07 | 0.01～0.16 | 0.01～0.35 | 0.02～0.30 *1 | 0～0.04 | 0.02～0.30 *1 | 0～0.04 |
*1 Interchangeable springs are available.
See page 44 regarding the springs of CM-100 and GMF-70.
