I.T.O Corporation
ITO IGL Range House Regulator
Manufacturer: I.T.O Corporation
Model: IGL Range
Incorporated: AR-OPSO*1 or Relief*2, Strainer.
*1 IGL-H range for indoor installation only.
*2 IGL-S range for outdoor installation only.
- The IGL range is a meter regulator from Low Pressure or Low Intermediate Pressure to Low Pressure.
- The AR-OPSO incorporated for H type for indoor use.
- The Relief incorporated for the S type for outdoor use.
- Designed to supply city gas natural gas for low pressure meters.
*IGL-50S-F combines both AR-OPSO and safety relief valve.
| IGL-H type | |
 |  |
| IGL-20H | IGL-32H |
 |  |
| IGL-32H-F | IGL-50H-F |
| IGL-S type | ||
 |  |  |
| IGL-20S | IGL-20S-F | IGL-20S-R |
 |  |  |
| IGL-32S | IGL-32S-F | IGL-50S-F |
Specifications
| Model | IGL-20H | IGL-32H | IGL-32H-F | IGL-50H-F | IGL-20S | IGL-20S-F | IGL-20S-R | IGL-32S | IGL-32S-F | IGL-50S-F | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum Flow Rate(Nm³/h) | 15 | 60 | 200 | 15 | 70 | 200 | |||||
| Inlet Pressure | 3.00~15.0kPa | ||||||||||
| Outlet Pressure | 2.00±0.30kPa | ||||||||||
| Lockup Pressure | ≤2.50kPa | ||||||||||
| Auto-Reset OPSO Working Pressure | ≤5.00kPa | ≤5.00kPa | |||||||||
| Safety Relief Valve | Start-to-Discharge | 5.60~8.40kPa | |||||||||
| Stop-to-Discharge | 5.04~8.40kPa | ||||||||||
| Connection | Rc3/4 | Rc1 1/4 | Rc2 | Rc3/4 | Rc1 1/4 | Rc2 | |||||
| Strainer Mesh Gauge | 125 Mesh | 150 Mesh | 125 Mesh | 150 Mesh | |||||||
| Installation Site | Indoor | Outdoor | |||||||||
| Mounting Position (Direction of the Gas Flow) *3 | Vertical (↑) | Horizontal | Vertical (↑) | Horizontal | Vertical (↑) | Vertical (↑) | Horizontal | ||||
*3
If you need to change the standard mounting position, please inform us when placing your order.
It is essential to adjust the setting pressure and to change the direction of the waterproof vent protector.

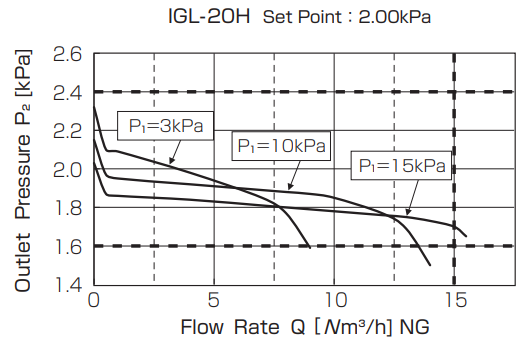

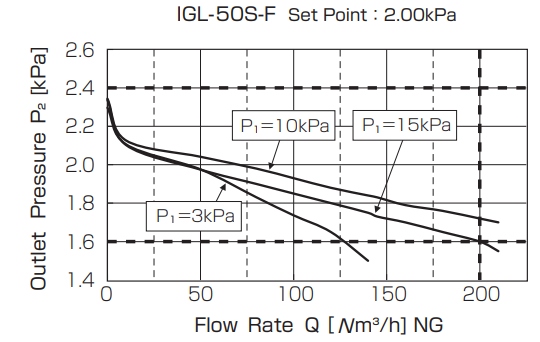

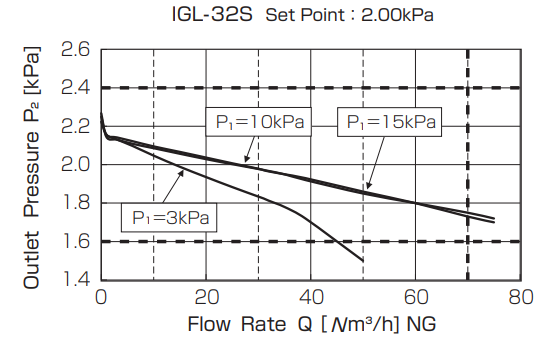

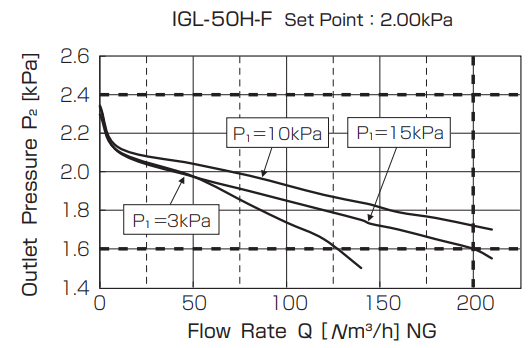

| Flow Rate | |
|---|---|
 |  |
 |  |
 |  |
