I.T.O Corporation
ITO LAX Series Liquid Automatic Changeover Devices
Manufacturer: I.T.O Corporation
Model: LAX Series
 |  |
 |  |

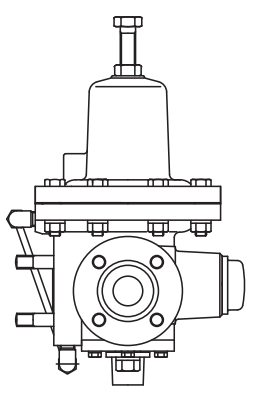

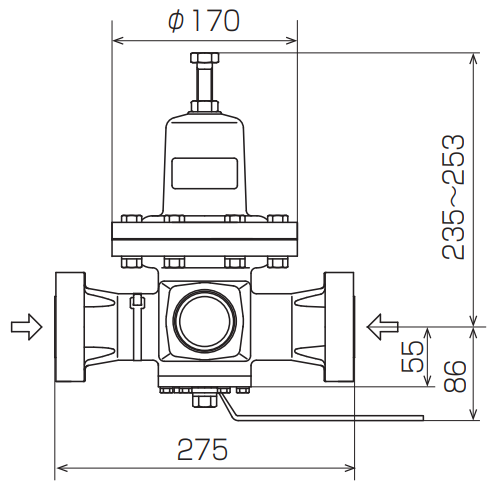

External Dimensions

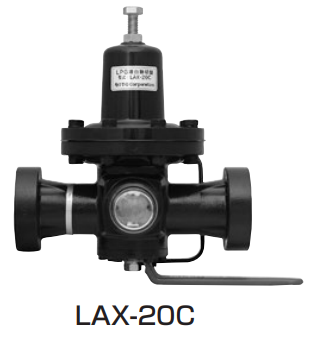

 * LAX-20C : 107 |  |  |
Accessories
 M12 Bolt×8 |  Spring Washer×12Nut |
 1/4BTube End Plug×1 |  Insert Ball forφ6 Copper Pipe×2 |
Specifications
| Gas Type | LPG(Liquid LPG) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum Flow Rate | 300kg/h | ||||||||||||
| Changeover Pressure | 0.05~0.15MPa | ||||||||||||
| Changeover Operating Pressure Allowance | ±0.01MPa | ||||||||||||
| Required Inlet Pressure (Minimum Pressure at Reserve Side) | (Changeover Pressure +ΔP) ~ 1.56MPa The values for ΔP are shown below;
| ||||||||||||
| Connection | Equivalent to JIS20K20A Flange |

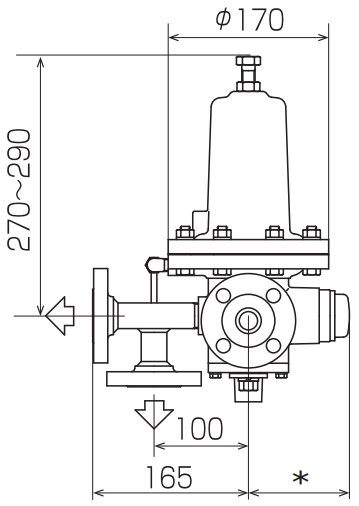

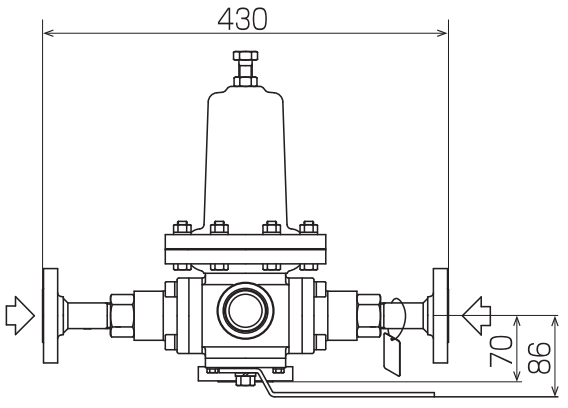

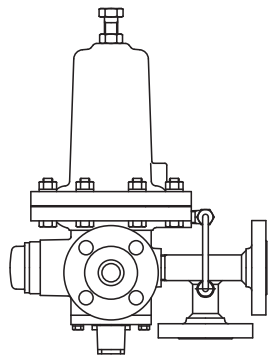

External Dimensions

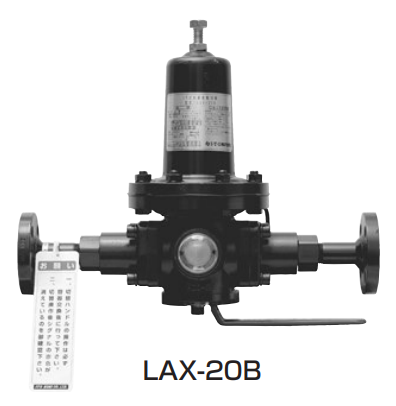

 |  * LAX-20B :107LAX-20B-R :157 |  |
Accessories
 1/4B Tube End Plug×1 |  Insert Ball forφ6 Copper Pipe×2 |  20A Cap Flange×1 |
 M12 Bolt×4 |  Spring Washer×4Nut×4 |  20A Flange Gasket×1 |
Specifications
| Gas Type | LPG(Liquid LPG) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum Flow Rate | 300kg/h | ||||||||||||
| Changeover Pressure | 0.05~0.15MPa | ||||||||||||
| Changeover Operating Pressure Allowance | ±0.01MPa | ||||||||||||
| Required Inlet Pressure (Minimum Puresure at Reserve Side) | (Changeover Pressure +ΔP) ~ 1.56MPa The values for ΔP are shown below;
| ||||||||||||
| Connection | JIS20K20A Flange |
