I.T.O Corporation

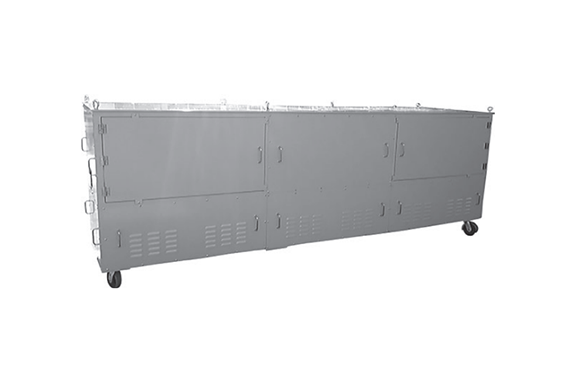

ITO MX-500W
Manufacturer: I.T.O Corporation
Model: MX-500W
- Mixes LPG with air to provide similar gas property to NG, to allow NG distribution to continue even during emergency or maintenance.
- The control panel stabilises mixed gas properties, keeps the fluctuation within the preset value based on the feedback from the calorimeter when the feeder gas composition remains constant.
- This will be achieved even with the butane rich LPG.
Specifications
| Model | MX-500W |
|---|---|
| Capacity | 370m³/h(normal) |
| Feeder Gas | C₃H₈ : C₄H₁₀=50:50 |
| Total Calorific Value of Mixed Gas | 62.8MJ/m³(15000kcal/m³) |
| Outlet Pressure | 30.0±3.0kPa~40.0±3.0kPa |
* This item can be manufactured to your specific request. Please contact your ITO sales representative.
