I.T.O Corporation

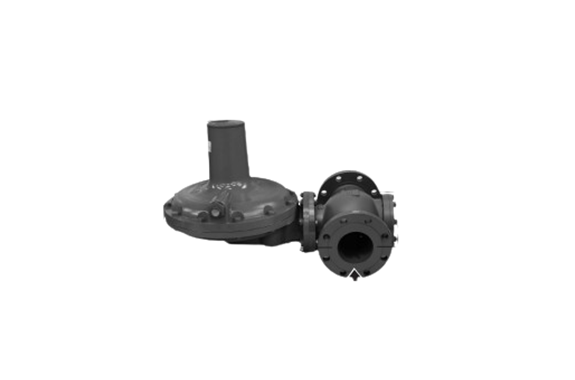

ITO NGX Range BL/ BLM Governor
Manufacturer: I.T.O Corporation
Model: NGX Range
Incorporated: AR-OPSO, Strainer.
- The NGX range is a direct-operated governor from Medium Pressure B to Low Pressure or Low Intermediate Pressure.
- It is the high performance governor with built-in strainers, and integrated JIS flanges.
- It is suitable to install it indoors since the safety relief valve is not incorporated.
 |  |
 |  |
 |  |
 |  |
Specifications
| Model | NGX-20 | NGX-25 | NGX-25-2 | NGX-32 | NGX-50 | NGX-50-2 | NGX-80 | NGX-100 | |
|---|---|---|---|---|---|---|---|---|---|
| Maximum Flow Rate (Nm³/h) | 85 | 185 | 155 | 330 | 330 | 185 | 845 | 905 | |
| Inlet Pressure (MPa) | 0.03~0.30 *1 | 0.03~0.10 | 0.03~0.30 *1 | 0.03~0.10 | 0.03~0.30 *2 | ||||
| Outlet Pressure (kPa) | 1.00~30.0 *3 *4 | 1.00~20.0 *3 *4 | |||||||
| Lockup Pressure (kPa) | ≦Set Point x 1.25 | ||||||||
| Auto-Reset OPSO | Working Pressure | Lockup Pressure + (Inlet Pressure x 0.015kPa (Minimum 5.00kPa)) | |||||||
| Reset Method | Resets automatically after outlet pressure resumes its normal range. | ||||||||
| Inlet Connection | JIS 10K 20A Flange(FF) | JIS 10K 25A Flange(FF) | JIS 10K 32A Flange(FF) | JIS 10K 50A Flange(FF) | JIS 10K 80A Flange(RF) | JIS 10K 100A Flange(RF) | |||
| Outlet Connection | JIS 10K 20A Flange(FF) | JIS 10K 32A Flange(FF) | JIS 10K 50A Flange(FF) | JIS 10K 50A Flange(FF) | JIS 10K 80A Flange(RF) | JIS 10K 100A Flange(RF) | |||
| Vent Connection | Rc3/4 | Rc1 | Rc3/8 | ||||||
| Strainer Mesh Gauge | 100 Mesh *5 | ||||||||
*1 Custom-made products for inlet pressure 0.30~1.00MPa are also available.
*2 Custom-made products for inlet pressure 0.30~0.50MPa are also available.
*3 Interchangeable springs are available.
*4 The outlet pressure varies depending on the mounting position. Please specify your required mounting position when placing your order.
*5 The strainer with 200 mesh is also available.
| Model | NGX-20/25/25-2/32/50/50-2 | NGX-80/100 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. | ① | ② | ③ | ④ | ⑤ | ⑥ | ⑨ | ① | ② | ③ | ④ | ⑤ |
| Spring Colour | White | Red | Blue | Yellow | Green | Black | – | – | – | – | – | – |
| Set Point Range (kPa) | 1.00~1.50 | 1.50~3.00 | 3.00~5.00 | 5.00~8.00 | 8.00~13.0 | 13.0~20.0 | 20.0~30.0 | 1.00~2.00 | 2.00~4.00 | 4.00~10.0 | 10.0~16.0 | 16.0~20.0 |
shows the standard spring.

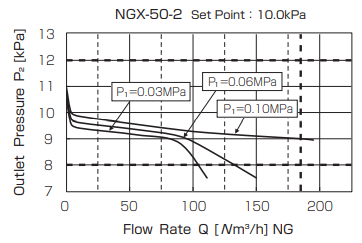

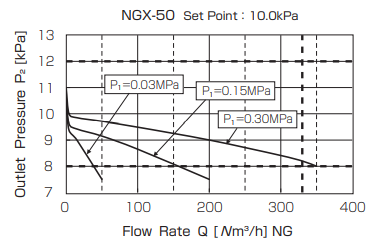

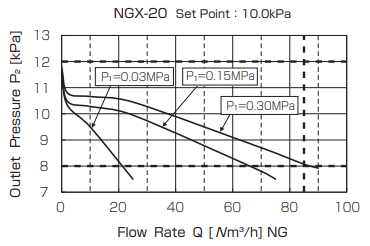

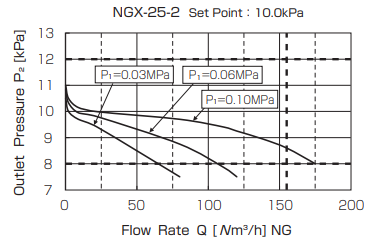

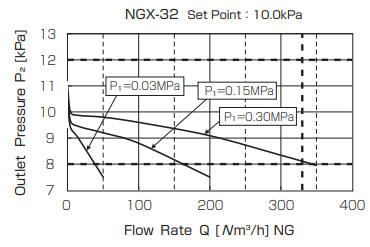

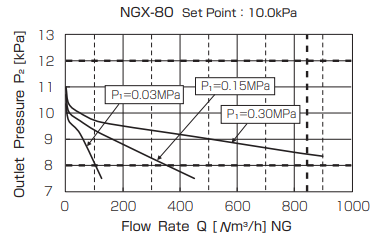

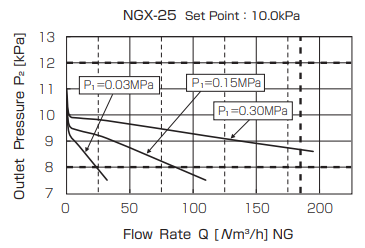

| Flow Rate | |
|---|---|
 |  |
 |  |
 |  |
 |  |
