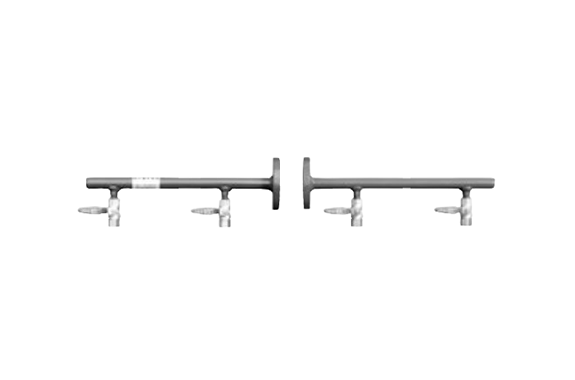

ITO PHW Series High Pressure Manifold Assembly Kits

Manufacturer: I.T.O Corporation
Model: PHW Series

15A Unilateral Flange TypeWith High Pressure Hoses
ModelHigh Pressure Hose(Provided with Kit)
L×q’tConnector
PHW-4B-TH600mm × 4Handwheel Inc.
Tensile Trigger
Shut-Off Valve		(A)
PHW-4B-TS600mm × 4Mechanical Inc.
Tensile Trigger
Shut-Off Valve
ModelHigh Pressure Hose(Provided with Kit)
L×q’tConnector
PHW-6B-TH600mm × 4
1000mm × 2		Handwheel Inc.
Tensile Trigger
Shut-Off Valve		(B)
PHW-6B-TS600mm × 4
1000mm × 2		Mechanical Inc.
Tensile Trigger
Shut-Off Valve
ModelHigh Pressure Hose(Provided with Kit)
L×q’tConnector
PHW-8B-TH600mm × 4
1000mm × 4		Handwheel Inc.
Tensile Trigger
Shut-Off Valve		(B)
PHW-8B-TS600mm × 4
1000mm × 4		Mechanical Inc.
Tensile Trigger
Shut-Off Valve
ModelHigh Pressure Hose(Provided with Kit)
L×q’tConnector
PHW-10B-TH600mm × 6
1000mm × 4		Handwheel Inc.
Tensile Trigger
Shut-Off Valve		(B)
PHW-10B-TS600mm × 6
1000mm × 4		Mechanical Inc.
Tensile Trigger
Shut-Off Valve
15A Bilateral Flange Type
ModelHigh Pressure Hose(Provided with Kit)
L×q’tConnector
PHW-6FB-TH600mm × 4
1000mm × 2		Handwheel Inc.
Tensile Trigger
Shut-Off Valve		(C)
PHW-6FB-TS600mm × 4
1000mm × 2		Mechanical Inc.
Tensile Trigger
Shut-Off Valve
ModelHigh Pressure Hose(Provided with Kit)
L×q’tConnector
PHW-8FB-TH600mm × 4
1000mm × 4		Handwheel Inc.
Tensile Trigger
Shut-Off Valve		(C)
PHW-8FB-TS600mm × 4
1000mm × 4		Mechanical Inc.
Tensile Trigger
Shut-Off Valve
ModelHigh Pressure Hose(Provided with Kit)
L×q’tConnector
PHW-10FB-TH600mm × 6
1000mm × 4		Handwheel Inc.
Tensile Trigger
Shut-Off Valve		(C)
PHW-10FB-TS600mm × 6
1000mm × 4		Mechanical Inc.
Tensile Trigger
Shut-Off Valve
ModelHigh Pressure Hose(Provided with Kit)
L×q’tConnector
PHW-12FB-TH600mm × 6
1000mm × 6		Handwheel Inc.
Tensile Trigger
Shut-Off Valve		(C)
PHW-12FB-TS600mm × 6
1000mm × 6		Mechanical Inc.
Tensile Trigger
Shut-Off Valve

Accessories

(A)(B)(C)
Bracketx2
M8 Anchor Bolt with Nutx4
15A U Bolt with Nutx2
M12 Boltx8
M12 Nutx8
M12 Spring Washerx8
M12 Flat Washerx16
15A Flange Gasketx2		Bracketx4
M8 Anchor Bolt with Nutx8
15A U Bolt with Nutx4
M12 Boltx8
M12 Nutx8
M12 Spring Washerx8
M12 Flat Washerx16
15A Flange Gasketx2		Bracketx4
M8 Anchor Bolt with Nutx8
15A U Bolt with Nutx4
M12 Boltx16
M12 Nutx16
M12 Spring Washerx16
M12 Flat Washerx32
15A Flange Gasketx4
15A Cap Flangex2

Other Available Accessories

Flange Gasket

Model
15A Flange Gasket
20A Flange Gasket
25A Flange Gasket
40A Flange Gasket
50A Flange Gasket
Bolt, Nut, Washer

Model
15A U-Bolt
with Nut for PHW
20A U-Bolt
with Nut for PHW
Model
M12×55mm
Bolt/Nut/Spring Washer
M12×55mm
Bolt/Nut/Spring Washer/
Flat Washer
M12 Flat Washer
M16×55mm
Bolt/Nut/Spring Washer
20A Bilateral Flange Type
PHW-20 Accessories
(Other Available Accessories)
Bracket×4
M8 Anchor Bolt with Nut×8
U Bolt with Nut×4
M12 Bolt×16
M12 Nut×16
M12 Spring Washer×16
M12 Flat Washer×32
20A Flange Gasket×4
20A Cap Flange ×2
15A Thread Type
Accessories
Bracketx2
15A U Boltx2
M5 Butterfly Nutx4
M5 Flat Washerx4
Tapping Screwx4		Accessories
Bracketx4
15A U Boltx4
M5 Butterfly Nutx8
M5 Flat Washerx8
Tapping Screwx8
15A Straight Flange Connector
15A Angle Flange Connector
