I.T.O Corporation
ITO PS/ RS/ IB Signal Transmitting System, Relay Barrier
Manufacturer: I.T.O Corporation
Model: PS/ RS/ IB

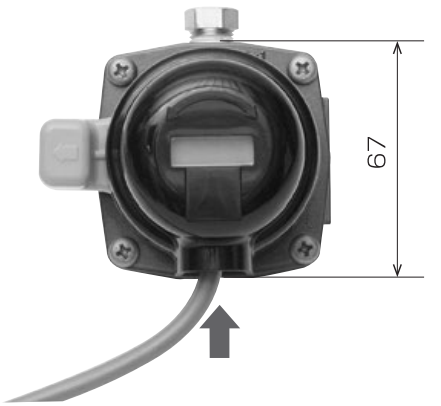

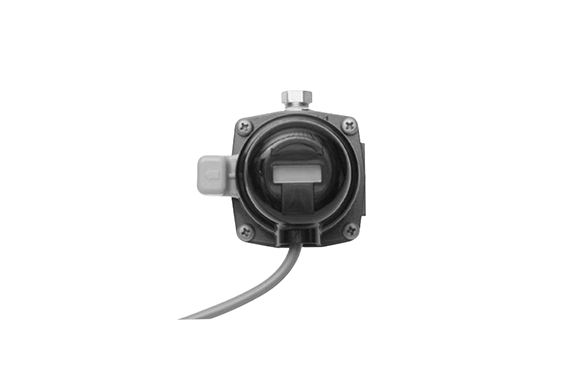

Changeover Indicator
PS-05K
| Working Pressure | ≤ 0.20MPa |
|---|---|
| Signal Set Point | 55.0±2.00kPa |
| Connection | Rc1/4 |
| Contact Form | Non-Voltage, Normally Open Cotact |
| Max. Allowable Voltage | DC200V |
| Max. Allowable Current | DC0.5A |
| Contact Resistance | ≤ 1.0Ω |
| Lead Wire | VCTF0.5mm²(2 conductors)×1m |

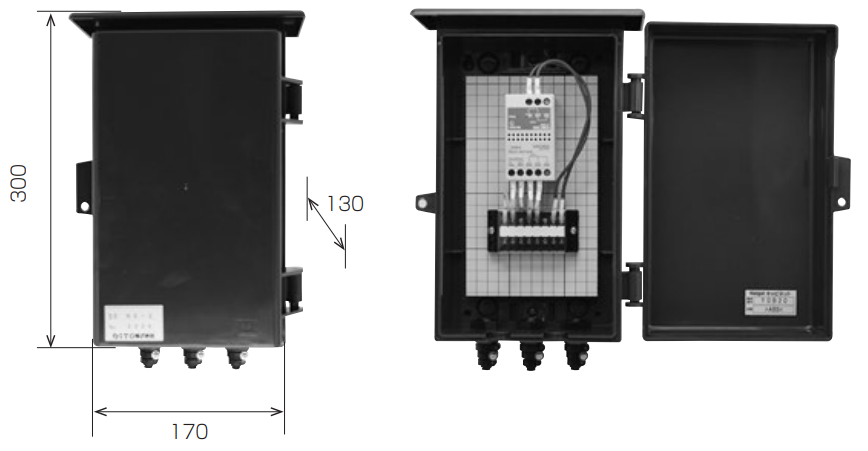

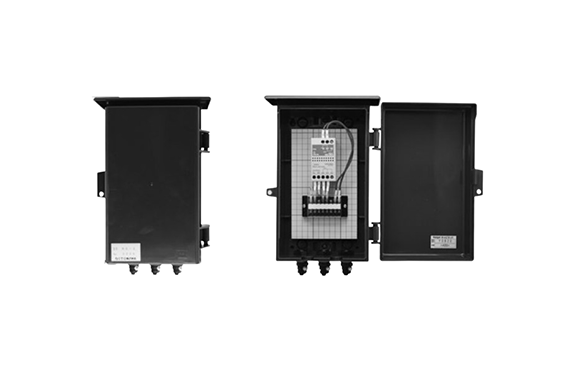

Relay Barrier
RS-2
| Type of Protection | Intrinsic Safety |
|---|---|
| Rated Voltage | AC100V~240V 50/60Hz |
| Power Consumption | 9.6VA |

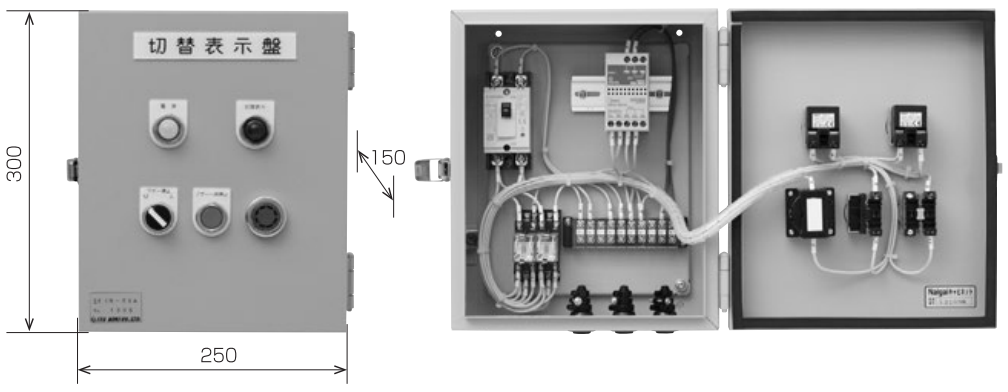

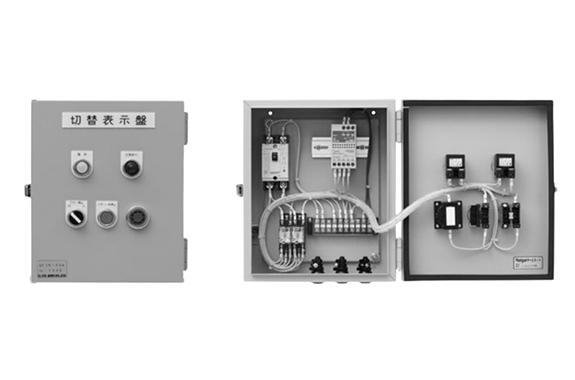

Changeover Alarm Box Incorporating with a Relay Barrier
IB-EXA
| Type of Protection | Intrinsic Safety |
|---|---|
| Rated Voltage | AC100V(AC200V) 50/60Hz |
| Power Consumption | 100V: 11VA 200V: 11.9V |

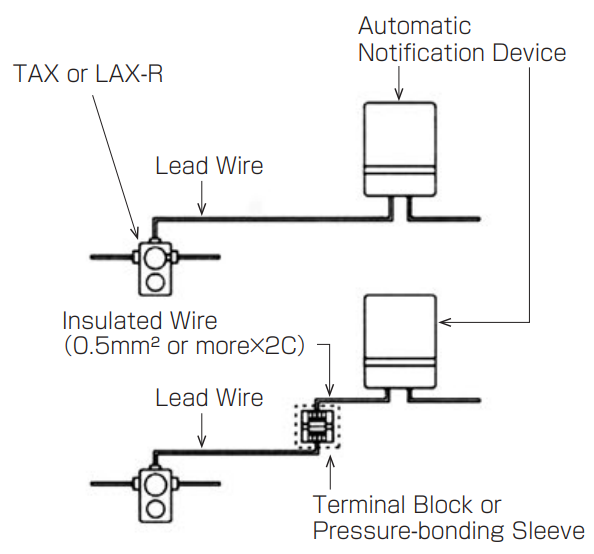

Application
| Installation in a Hazardous Place | Installation in a Non-Hazardous Place |
|---|---|
 |  |
