ITO REGIT-AB Range AB Governor Unit
Manufacturer: I.T.O Corporation
Model: REGIT-AB Range
Incorporated: AR-OPSO, Relief, Strainer.
Japan Gas Association Technical Prize
- The REGIT-AB range is a unit of pressure reducing governors from Medium Pressure A to Medium Pressure B and multiple safety devices into one same compact body regardless of the single (REGIT-AB-S) or double unit (REGIT-AB-W).
- Widely used as an Exclusive Governor or small-scale District Governor.
- Only direct-operated governors used, which provides outstanding quick response and easy maintenance.
- The REGIT-AB-W has a double line structure, which allows its use without suspending gas supply during maintenance and so does not require installation of temporary governors.
 |

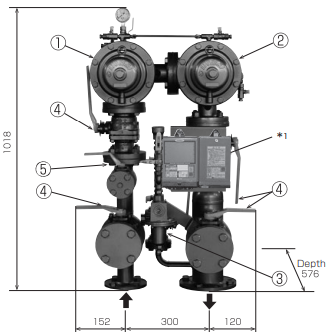

| REGIT-AB-S |
Main Components
| No. | Item Name | Quantity |
|---|---|---|
| ① | Auto-Reset OPSO | 1 |
| ② | Medium Pressure A to B Governor | 1 |
| ③ | Safety Relief Valve | 1 |
| ④ | Ball Valve | 4 |
| ⑤ | Ball Valve | 2 |
*Auto-recording pressure gauge is available as a separate accessory.
 |

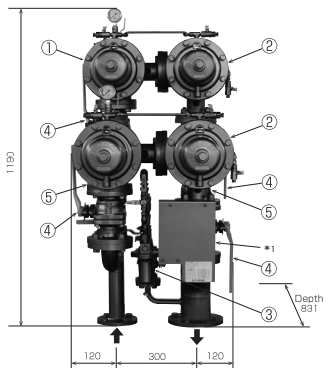

| REGIT-AB-W |
Main Components
| No. | Item Name | Quantity |
|---|---|---|
| ① | Auto-Reset OPSO | 2 |
| ② | Medium Pressure A to B Governor | 2 |
| ③ | Safety Relief Valve | 1 |
| ④ | Ball Valve | 4 |
| ⑤ | Ball Valve | 2 |
*Auto-recording pressure gauge is available as a separate accessory.
Specifications
| Model | REGIT-AB-S/REGIT-AB-W | |||
|---|---|---|---|---|
| Set point (MPa) | 0.10 | 0.15 | 0.20 | |
| Maximum Flow Rate(Nm³/h) | 1000 | |||
| Inlet Pressure(MPa) | 0.30 ~ 0.99 | |||
| Outlet Pressure (MPa) | Main Line | 0.10±0.01 | 0.15±0.015 | 0.20±0.02 |
| Sub Line*1 | 0.07±0.01 | 0.12±0.015 | 0.17±0.02 | |
| Lockup Pressure (MPa) | Main Line | ≤0.12 | ≤0.18 | ≤0.24 |
| Sub Line | ≤0.084 | ≤0.144 | ≤0.204 | |
| Safety Relief Valve (MPa) | Start-to-Discharge | 0.23~0.25 | 0.27~0.29 | |
| Stop-to-Discharge | 0.21~0.25 | 0.25~0.29 | ||
| Auto-Reset OPSO | Working Pressure | 0.15MPa | 0.20MPa | 0.25MPa |
| Reset Method | Resets automatically after outlet pressure resumes its normal range. | |||
| Inlet Connection | JIS 10K 50A Flange (FF) | |||
| Outlet Connection | JIS 10K 100A Flange (FF) | |||
| Strainer Mesh Gauge | 100 Mesh *2 | |||
*1 For REGIT-AB-W only.
*2 The strainer with 200 mesh is also available.
Auto-Reset OPSO (AR-OPSO)
The ITO “AR-OPSO”, an inner auto-reset type over pressure shut-off valve incorporated additionally, works to avoid outlet pressure rises if any foreign object is caught between the main valve disc and the main orifice, inner sealing failed.
Safety Relief Valve
A valve that opens and releases overpressure into the air to prevent abnormal pressure increases.

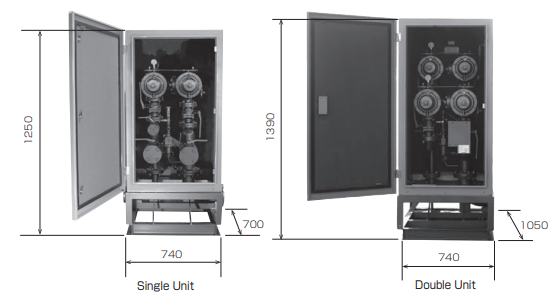

| Mounting pipework and storage box are available as separate accessories. |
 |

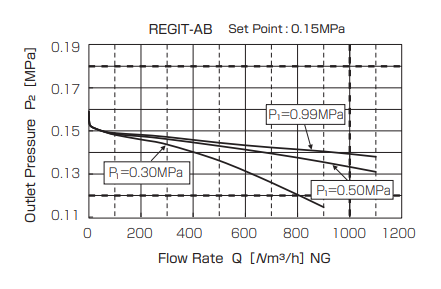

| Flow Rate |
|---|
 |
