ITO REGIT50-EX Range AL/ ALM Governor Unit
Manufacturer: I.T.O Corporation
Model: REGIT50-EX Range
Incorporated: AR-OPSO*, Relief, MR-OPSO, Strainer. (*AL only)
- The REGIT50-EX range is a unit of pressure reducing governors from Medium Pressure A to Low Pressure or Low Intermediate Pressure and multiple safety devices into one compact body.
- Simplified REGIT (see page 9~10 for more description) to achieve larger flow rate, AL 700Nm³/h*1, ALM 1,000Nm³/h. (*1:AL with SGX-100 also up to 1,000m³/h at max)
 |
| REGIT50-AL-EX REGIT50-ALM-EX |

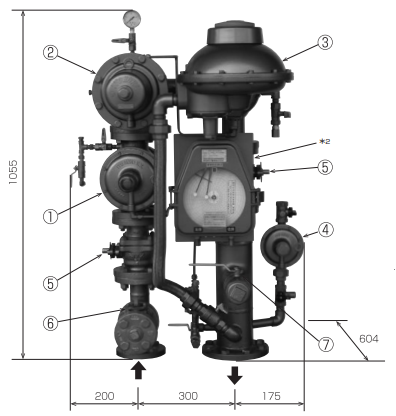

Main Components
| No. | Item Name | Quantity |
|---|---|---|
| ① | Manual-Reset OPSO | 1 |
| ② | Medium Pressure A to B Governor | 1 |
| ③ | Medium Pressure B to Low Pressure Governor/ Medium Pressure B to Intermediate Pressure Governor | 1 |
| ④ | Safety Relief Valve | 1 |
| ⑤ | Ball Valve | 2 |
| ⑥ | Ball Valve | 1 |
| ⑦ | Ball Valve | 1 |
*2 Auto-recording pressure gauge is available as a separate accessory.
Specifications
| Model | REGIT50-AL-EX | REGIT50-ALM-EX | |
|---|---|---|---|
| Maximum Flow Rate(Nm³/h) | 700 | 1000 | |
| Inlet Pressure(MPa) | 0.30 ~ 0.99 | ||
| Outlet Pressure(kPa) | 1.90 ~ 2.30 | 9.00 ~ 20.0 *3 | |
| Lockup Pressure(kPa) | ≤2.50 | ≤Set Point × 1.2 | |
| Safety Relief Valve Working Pressure | 2.70 ~ 8.00kPa *3 | 9.00 ~ 30.0kPa *3 | |
| Auto-Reset OPSO | Working Pressure | ≤5.00 kPa | |
| Reset Method | Resets automatically after outlet pressure resumes its normal range. | ||
| Manual-Reset OPSO | Working Pressure | 8.00 ~ 13.0 kPa *3 | 9.00 ~ 30.0 kPa *3 |
| Reset Method | Manual Operation by the Reset Button | ||
| Inlet Connection | JIS 10K 50A Flange(FF) | ||
| Outlet Connection | JIS 10K 100A Flange(FF) | ||
| Strainer Mesh Gauge | 100 Mesh *4 | ||
*3 Interchangeable springs are available.
*4 The strainer with 200 mesh is also available.

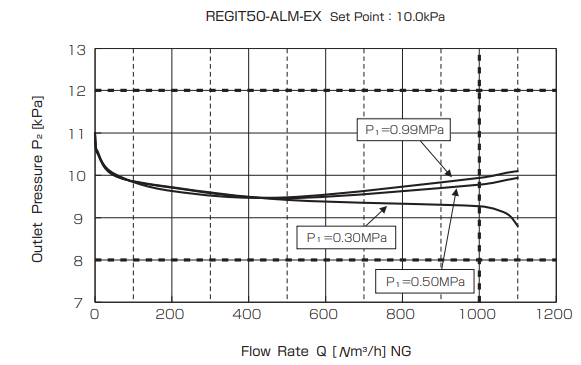

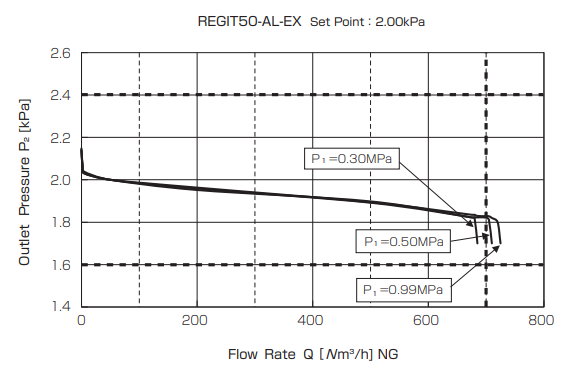

| Flow Rate |
|---|
 |
 |
