I.T.O Corporation

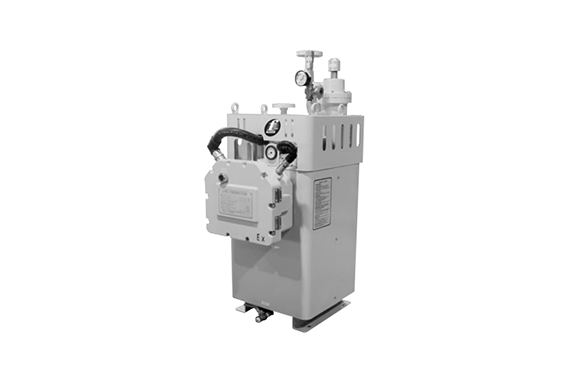

ITO S/ ITOS Electrical Heating Type Vaporisers
Manufacturer: I.T.O Corporation
Model: S/ ITOS
f RIZER Type S
 |  |  *Control Panel Incorporated. |
Specifications
| Model | ||||||
|---|---|---|---|---|---|---|
| Items | S-50 | S-100 | S-150 | S-200 | S-300 | |
| Vaporisation Capacity (LPG) | 50kg/h | 100kg/h | 150kg/h | 200kg/h | 300kg/h | |
| Heat Source | Heater Capacity | 7.5kW | 15kW | 22.5kW | 30kW | 45kW |
| Rated Voltage | 220/380/440V 3-Phase | |||||
| Hot Water Control Temprature | 60~75℃(70℃ Set Point) | |||||
| Hot Water Superheat Prevention | 80℃ | |||||
| Liquid Carryover Protection | By means of Float Valve | |||||
| Working Pressure for Safety Valve | 1.80MPa | |||||
| Inlet Pressure | 0.10~1.56MPa | |||||
| Connection | Liquid Inlet Flange | Equivalent to JIS 20K20A | ||||
| Gas Outlet Flange | Equivalent to JIS 20K20A | Equivalent to JIS 20K25A | ||||
| External Dimensions | Width | 420mm | 420mm | 480mm | 580mm | 580mm |
| Depth | 570mm | 570mm | 630mm | 740mm | 740mm | |
| Height | 1115mm | 1183mm | 1253mm | 1215mm | 1315mm | |
f RIZER ITOS
 |  |  *Control Panel Incorporated. |
Specifications
| Model | |||||||
|---|---|---|---|---|---|---|---|
| Items | ITOS-30 | ITOS-50 | ITOS-100 | ITOS-150 | ITOS-200 | ITOS-300 | |
| Vaporisation Capacity (LPG) | 30kg/h | 50kg/h | 100kg/h | 150kg/h | 200kg/h | 300kg/h | |
| Heat Source | Heater Capacity | 4.5kW | 7.5kW | 15kW | 22.5kW | 30kW | 45kW |
| Rated Voltage | 220V Single-Phase 220/380/440V 3-Phase | 220/380/440V 3-Phase | |||||
| Hot Water Control Temprature | 60~80℃(75℃ Set Point) | ||||||
| Hot Water Superheat Prevention | 85℃ | ||||||
| Liquid Carryover Protection | By means of Float Valve | ||||||
| Working Pressure for Safety Valve | 1.75MPa | ||||||
| Inlet Pressure | 0.10~1.60MPa | ||||||
| Connection | Liquid Inlet Flange | DN20(PN25) | DN25(PN25) | ||||
| Gas Outlet Flange | DN20(PN25) | DN25(PN25) | |||||
