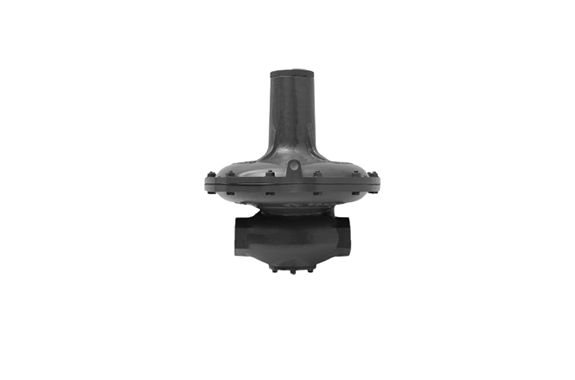

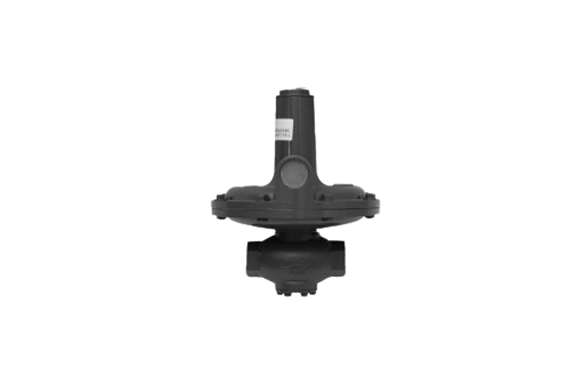

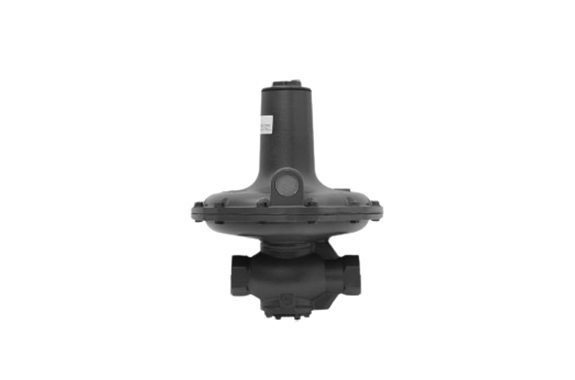

ITO SG Range Governor For Low Differential Pressures
Manufacturer: I.T.O Corporation
Model: SG Range
Incorporated: Relief.
The SG range is a direct-operated governor from Low Pressure or Low Intermediate Pressure to Low Pressure or Low Intermediate Pressure with a large capacity driven by low differential pressures.
 |  |  |
Specifications
| Model | SG-24A | SG-32B | SG-36A |
|---|---|---|---|
| Maximum Flow Rate (Nm³/h) | 120 | 300 | 460 |
| Inlet Pressure(kPa) | 1.00~35.0 | ||
| Outlet Pressure(kPa) | 0.50~20.0 *1 | ||
| Lockup Pressure(kPa) | ≦2.60 *2 | ||
| Connection | Rc1 | Rc1 1/2 | Rc2 |
| Safety Relief Valve (kPa) | Start-to-Discharge | 4.80~7.60 *2 | |
| Stop-to-Discharge | 4.24~7.60 *2 | ||
| Vent Connection | Rc1 | Rc1/4 | |
*1 Interchangeable springs are available.
*2 Set Outlet Pressure at 2.00kPa.
Interchangeable Spring Selection
| No. | ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | |
|---|---|---|---|---|---|---|---|---|---|---|
| Set Point Range (kPa) | SG-24A | 1.00~4.00 | 3.50~10.0 | 5.00~15.0 | 10.0~20.0 | 15.0~20.0 | 0.30~1.00 | 0.50~2.00 | 6.00~12.0 | |
| SG-32B | 1.30~3.70 | 0.80~1.50 | 8.00~16.0 | 3.00~10.5 | 14.0~20.0 | 2.00~8.00 | 6.00~12.0 | |||
| SG-36A | 1.00~4.00 | 3.50~10.0 | 5.00~15.0 | 10.0~20.0 | 15.0~20.0 | |||||
shows the standard spring.
requires additional supporting diaphragm disc.

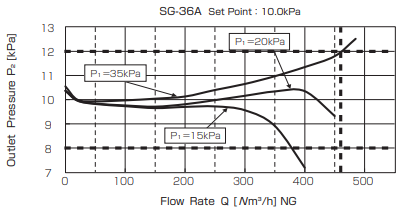

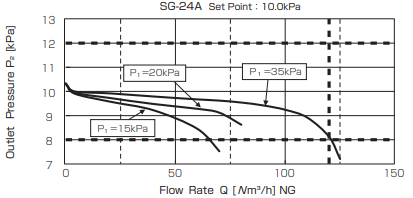

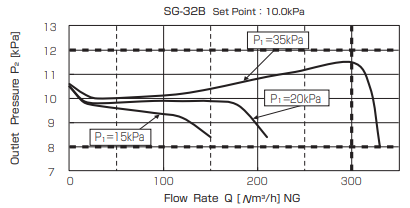

| Flow Rate |
|---|
 |
 |
 |
