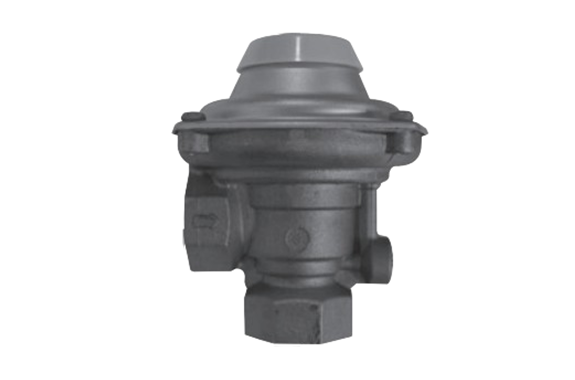

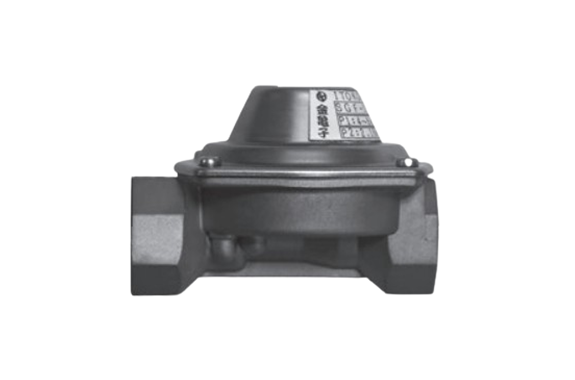

ITO SGF Range House Regulator
Manufacturer: I.T.O Corporation
Model: SGF Range
- The SGF range is a meter regulator from low pressure to low pressure with a large capacity driven by low differential pressure for city gas natural gas.
- Indoor installation only.
- Installed at each door at higher elevation in high-rise buildings such as multistory apartment building and reduces low pressure city gas natural gas, which rises by the difference of elevation, to an appropriate level.
 |  |

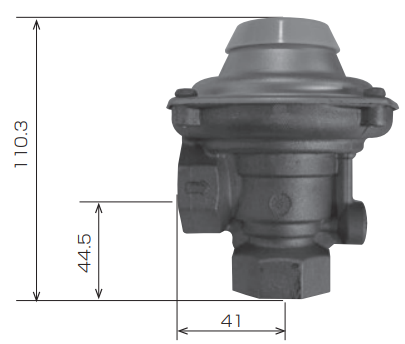

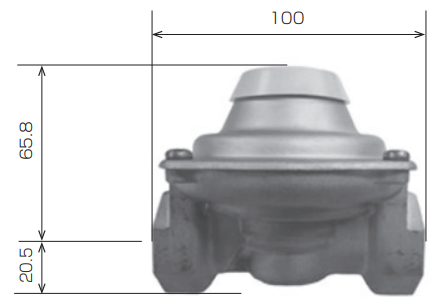

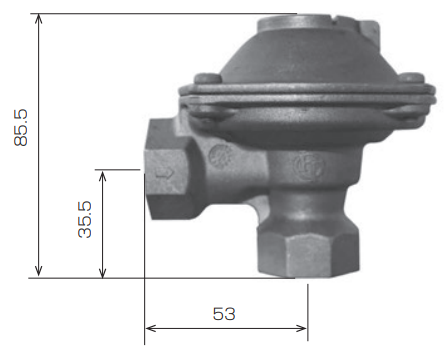

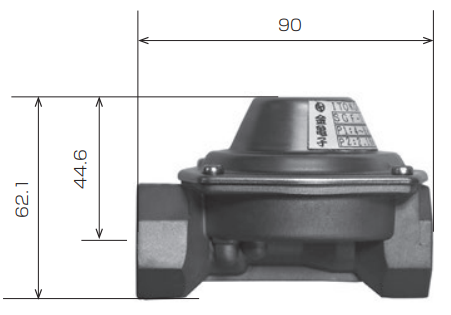

| SGF-15 | SGF-20L |
 |  |
| SGF-15L | SGF-20S |
 |  |
| SGF-15S | SGF-25 |
Specifications
| Model | SGF-15 | SGF-15S/SGF-15L | SGF-20S/SGF-20L | SGF-25 | ||||
|---|---|---|---|---|---|---|---|---|
| Maximum Flow Rate(Nm³/h) | 5.5 | 4 | 6.5 | 6 | 9 | 24.8 | 40.9 | 48.3 |
| Inlet Pressure(kPa) | 4.00~8.00 | 2.30~4.00 | 4.00~10.0 | 2.3~4.00 | 4.00~10.0 | 5 | 7.5 | 10 |
| Outlet Pressure(kPa) | 2.16±0.32 | |||||||
| Lockup Pressure(kPa) | ≤2.70 | |||||||
| Connection | Rc1/2 | Rc3/4 | Rc1 | |||||
| Strainer Mesh Gauge | N/A | 60Mesh | ||||||

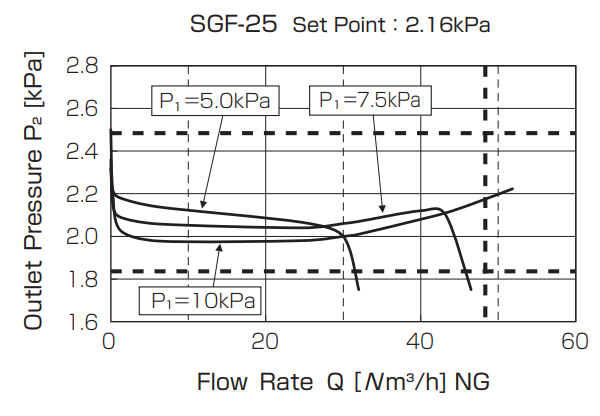

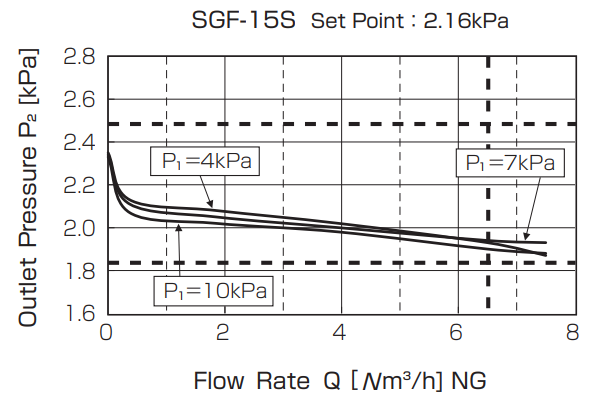

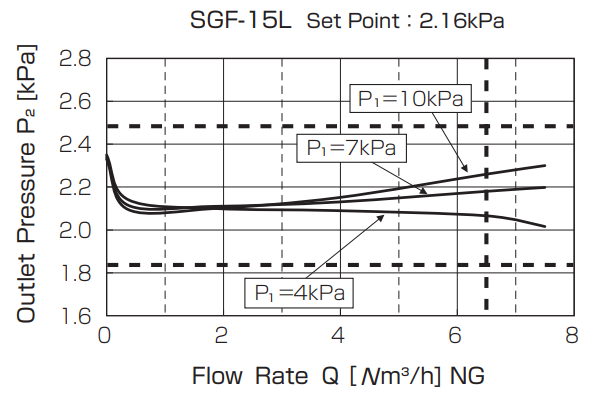

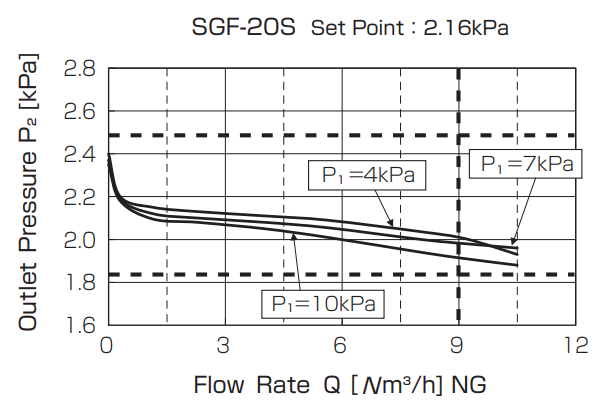

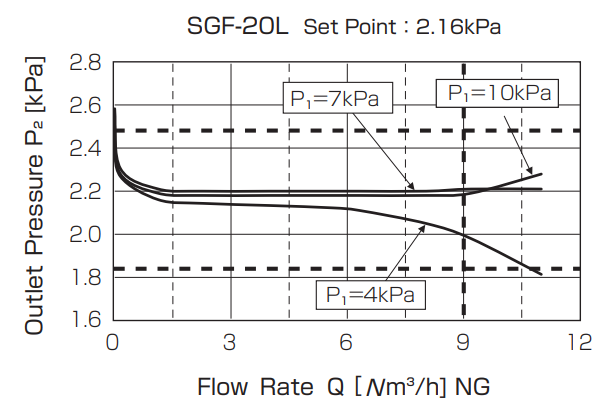

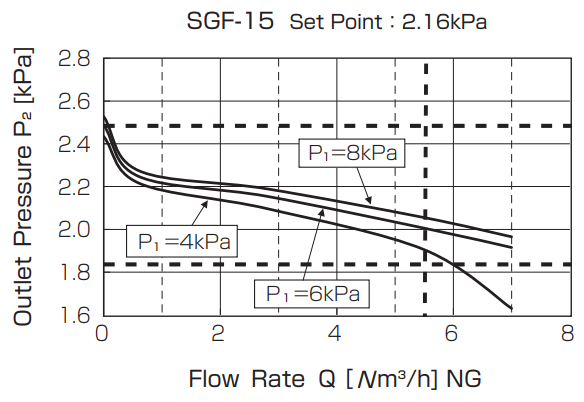

| Flow Rate | |
|---|---|
 |  |
 |  |
 |  |
