I.T.O Corporation

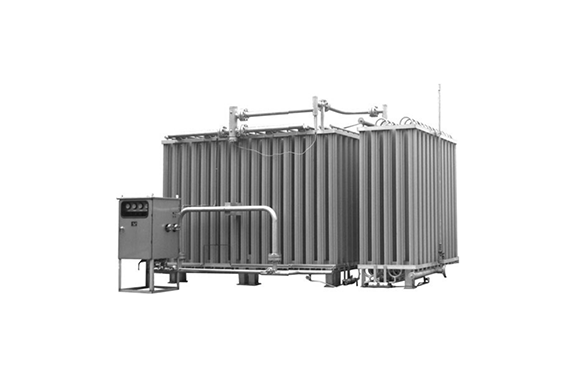

ITO SR-W Series Air Heating Type Vaporiser
Manufacturer: I.T.O Corporation
Model: SR-W Series
Air Heating Type Vaporiser SR-W Range
*Long fin type, SR-WL is also available, which a minimal sp
External Dimensions
Specifications
| Model | 100W | 150W | 200W | 300W | 400W | 500W | 600W | 700W | 800W | 1000W | 1500W | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Vaporising Ability Propane, kg/h | 100 | 150 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 | 1500 | |
| Atmospheric Temperature | ≥ -5℃ | |||||||||||
| Outlet Gas Temperature | ≥ -10℃ | |||||||||||
| Nominal Continuous Operating Time* | ≤5hours | |||||||||||
| Inlet pressure | 0.15~1.56MPa | |||||||||||
| Outlet Pressure | Service Side | 0.10~0.12MPa | ||||||||||
| Reserve Side | 0.07~0.09MPa | |||||||||||
| Liquid Carryover Protection | Temperature Sensing Shut-Off(-20℃ Set Point) | |||||||||||
| Working Pressure for Safety Valve | 1.56MPa | |||||||||||
| Liquid Inlet | JIS20K20A Flange | |||||||||||
| Gas Outlet | JIS20K Flange | |||||||||||
| External Dimensions(mm) | Width | 2032 | 2832 | 3032 | 2832 | 3632 | 4232 | 4432 | 4932 | 5812 | 5760 | |
| Depth | 1080 | 1140 | 1340 | 1740 | 2340 | 2540 | 2750 | 2950 | 5394 | |||
| Height | 2850 | 2900 | 2950 | 3131 | ||||||||
*Declared at being around 1m/sec. of wind speed. This vaporising ability is greatly affected by various factors.
Please feel free to ask us for further information.
