Manufacturer: I.T.O Corporation

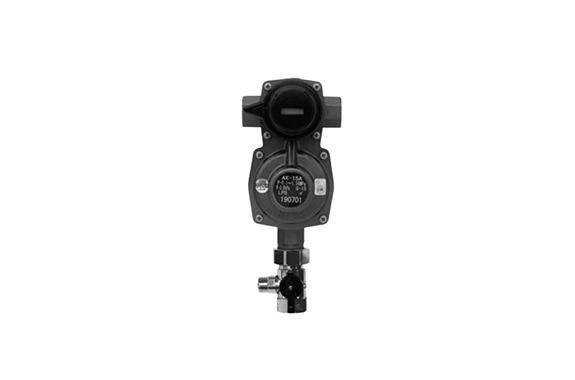

Model: (T)AX-15A

Model Reference Guide

• AX-15A Model Code
• TAX-15A Model Code

①Outlet Connection | ②Inlet Connection (③HP Hose Connector)

①

Code	Inlet Connection		Accessories
	Rc1/2		N/A
F	JIS20K 15A Flange		A
4	JIS POL-4 cyls. Kit Inc. 4 Hoses(L:600mm), Manifolds		B
4J	JIS POL-4 cyls. Kit Inc. 2 Hoses(L:600mm), 2 Hoses(L:1000mm), Manifolds (Compact Model)		B
6	JIS POL-6 cyls. Kit Inc. 4 Hoses(L:600mm), Manifolds		C
6J	JIS POL-6 cyls. Kit Inc. 2 Hoses(L:600mm), 2 Hoses(L:1000mm), Manifolds (Compact Model)		B

*Hoses provided with kit, not assembled.

②

Code	High Pressure Hose Connector
TH	Handwheel Inc. Tensile Trigger Shut-Off Valve
TS	Mechanical Inc. Tensile Trigger Shut-Off Valve

③

Code	Outlet Connection
	MB-60CU By Nippou corp. Rc 3/4 Gas Ball Valve with Inspection Port
With Union	R3/4 Union

*Connectors provided with kit, not assembled.

Range Specification

Accessories

(A)	(B)	(C)
15A Flange Gasketx2* *Bolts, nuts and washers are not included.	Bracketx2 15A U-Boltx2 M5 Butterfly Nutx4 M5 Flat Washerx4 Tapping Screwx4	Bracketx4 15A U-Boltx4 M5 Butterfly Nutx8 M5 Flat Washerx8 Tapping Screwx8

Model Reference Guide

*If the specification you require is not offered in the table below, contact our local branch or agency.
