I.T.O Corporation

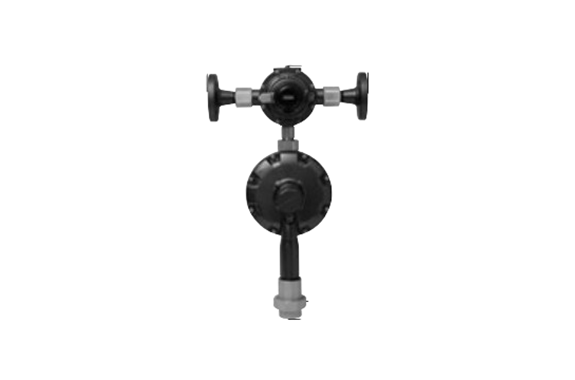

ITO (T)AX-50A/ AHL 50kg/h Double Stage Automatic Changeover Regulators
Manufacturer: I.T.O Corporation
Model: (T)AX-50A/ AHL
Model Reference Guide
- AX-50A Model Code
- TAX-50A Model Code
- AX-50AHL Model Code
- TAX-50AHL Model Code
①Outlet Connection
 |  |
 |  |
①
| Code | Outlet Connection | ||
|---|---|---|---|
| (T)AX-50A | (T)AX-50AHL | ||
| Rc1 1/4 Union |  |  | |
| With BV | BV-32U Rc1 1/4 Ball Valve for Union |  | |
*BV-32U provided with kit, not assembled.
Range Specification
| Capaciy(Propane) | 50kg/h |
|---|---|
| Inlet Pressure | 0.10~1.56MPa |
| Outlet Pressure | 2.55~3.30kPa |
| Lockup Pressure | ≤3.50kPa |
| Safety Relief Valve Working Pressure | 5.60~8.40kPa |
| Starting Pressure of Replenishment | < 0.10MPa |
| Inlet Connection | JIS20K20A Flange |
Accessories
 |
| 20A Flange Gasketx2* *Bolts, nuts and washers are not included. |
Model Reference Guide
*If the specification you require is not offered in the table below, contact our local branch or agency.
| ACO Without Leakage Detecting System | |
| ACO without Signal Transmitting Function | ACO with Signal Transmitting Function |
|---|---|
| Model | Model |
| AX-50A | TAX-50A |
| AX-50A(with BV) | TAX-50A(with BV) |
| ACO Incorporating Leakage Detecting System | |
| ACO without Signal Transmitting Function | ACO with Signal Transmitting Function |
|---|---|
| Model | Model |
| AX-50AHL | TAX-50AHL |
*See page 97 regarding gas flow recorders.
