Manufacturer: Kamei Iron Works Limited

Features

• The rainy season has finally begun in the Kansai region.
• Even though it started later than expected, the end is projected to follow the usual schedule.
• While it is a relief that the rainy period will be short, there is still concern that heavy rainfall could lead to disasters.
• This update is from the website manager.
• Limit valves are being assembled in a humid factory environment.
• Although electrical limit switches are commonly used, this model is designed for pneumatic equipment.
• When the shaft, which functions as a lever, is pressed by a kick plate, the air supply is cut off and the device stops.
• This type of mechanism has been used for many years in marine applications

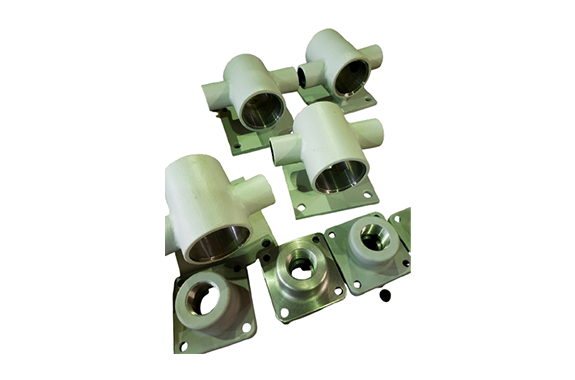

• The left side is the main body case and rear cover, while the right side is the front cover with an air-sealing valve.

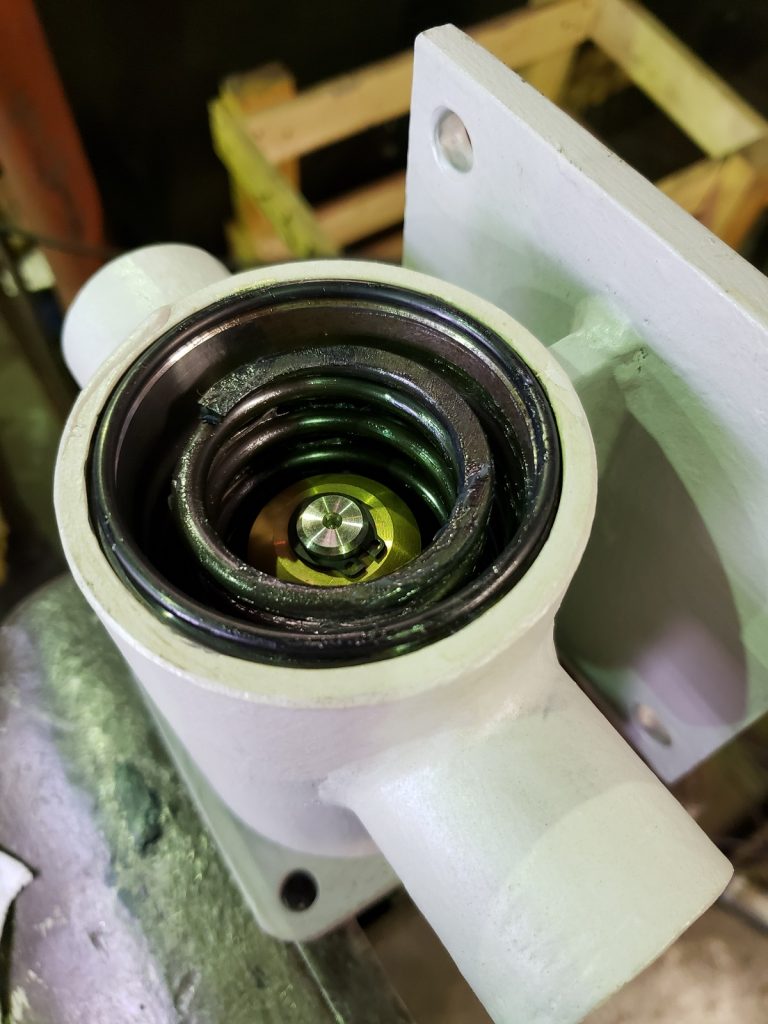

Install the front cover with the valve and insert the spring that determines the switching weight.

Install the rear cover.

Pressing the protruding shaft closes the internal valve.

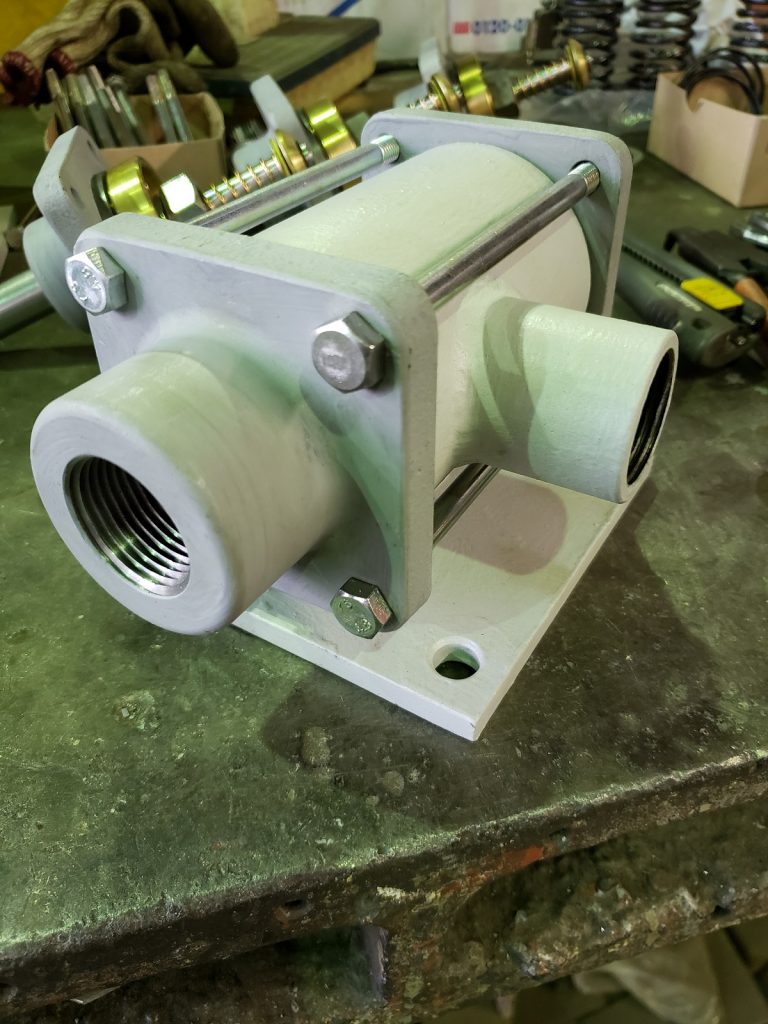

Install the plug and other components to complete the assembly.
