Japan, Kamiuchi

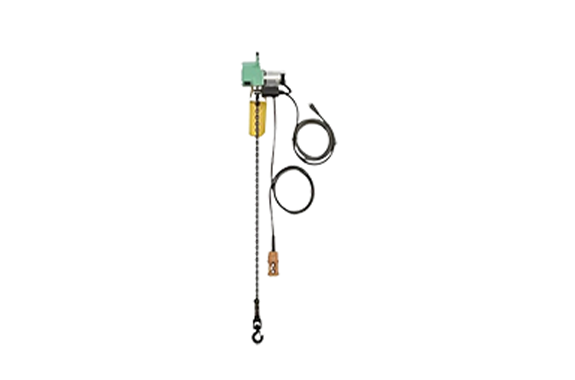

Kamiuchi Home Hoist

Product Made in Japan
Manufacturer: Kamiuchi
Model: Home Hoist
Features
It is a compact type that is small, lightweight (7 kg in weight), and easy to operate, making it convenient for lifting and lowering luggage at home. We have a rich lineup of options.
Specifications
Form | KL-1E type | KLC-1E type |
Maximum load | 200kg | |
Hoisting speed | 0.050~0.083m/s (3~5m/min) | 0.050~0.083m/s (0~5m/min) |
Operation power supply | 50/60Hz 100V | |
Motor output | Max 280W 5 minute rating 5.5A | |
Mass | Approximately 7kg | |
Lift | 3m or 6m | |
Chain | Link chain (φ5) | |
Method of operation | Floor push button type | Seat switch type with speed setting device |
Normal form
The most common monorail type. Hanging type with traverse device.
Low head type
Monorail type that allows for greater hoisting height in buildings with low ceilings. Hanging type with traverse device. The drum and rail are placed at right angles to reduce headroom.
Double rail type
A top running type that runs on two parallel rails.
