Kaneko Sangyo M81 Series Manual Reset Solenoid Valve
Manufactuer: Kaneko Sangyo
Model: M81 Series
Summary
In the solenoid valve is used for emergency solenoid valve and Maniaru reset operation is performed for the power outage, automatically switches the solenoid valve typically Maniaru expression Operating reset once again. or energized, even if the power failure, unless manually reset is semi-automatic valve with a mechanism that does not change the operating position.
Feature
A kind of safety valve capable of preventing malfunctioning.
Being a semi-automatic type, the valve does not operate freely like an ordinary solenoid valve by turning on or off of the power.
Packed type
Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.
Easy to operate manually.
Can be latched with the push of the palm button. Available in two types ― no voltage release and electrically tripped.
Standard specification
FLUID : CLEAN AIR
FLUID TEMPERATURE : －20～60℃
AMBIENT TEMPERATURE: －20～60℃
DUTY CYCLE: 100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE: ＋10，－15％
WORKING PRESSURE : 0 ～ 0.99MPa
Cv. FLOW FACTOR: 0.58
ELECTRICAL SPECIFICATIONS: See below
ELECTRICAL SPECIFICATIONS
| AC | DC | |||
|---|---|---|---|---|
| V/Hz | INRUSH A | HOLDING A | V | A |
| COIL INSULATION CLASS : B | ||||
| 100/50 | 2.8 | 0.50 | 24 | 0.91 |
| 100/60 | 3.1 | 0.56 | 48 | 0.53 |
| 110/60 | 2.6 | 0.46 | 100 | 0.24 |
| 200/50 | 1.4 | 0.25 | 110 | 0.26 |
| 200/60 | 1.6 | 0.28 | 125 | 0.20 |
| 220/60 | 1.3 | 0.23 | ||

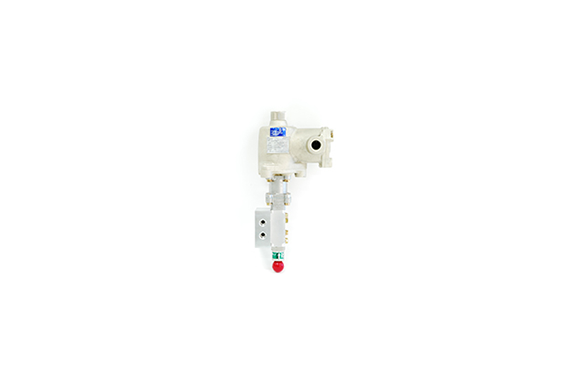

Product Image
M81 AC GENERAL PURPOSE TYPE
| M81-8 ～ 10 AC GENERAL PURPOSE TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 70 | 290 |
| 10 | 70 | 290 |
M81 DC GENERAL PURPOSE TYPE
| M81-8 ～ 10 DC GENERAL PURPOSE TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 70 | 314 |
| 10 | 70 | 314 |
M81 AC EXPLOSION-PROOF TYPE
| M81-8 ～ 10 AC EXPLOSION-PROOF TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 70 | 328 |
| 10 | 70 | 328 |
M81 DC EXPLOSION-PROOF TYPE
| M81-8 ～ 10 DC EXPLOSION-PROOF TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 70 | 332 |
| 10 | 70 | 332 |
