Japan, Kanetec

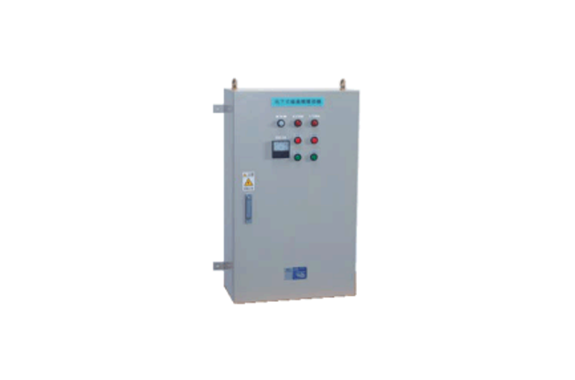

Kanetec BSTR Control Unit
Product Made in Japan
Manufacturer: Kanetec
Model: BSTR
Indoor type
A new compact type; one third of the volume of the conventional unit! Space saving and wall mountable!
Model | Power Source | Electromagnet Output | Drive Motor Output | Dimensions | Construction | Mass | |
| H | A | ||||||
| BSTR-65I | ※ 1 200 VAC 50/60Hz 3φ | 90 VDC 1.5kW | 200VAC1.5kW | 1000 （39.4） | 800 （31.5） | ※ 2 Indoor, dustproof, wall mounttype | Approx. 70 kg/154 lb |
| BSTR-80I | 90 VDC 2.4kW | ||||||
| BSTR-90I | 90 VDC 3.1kW | 200VAC2.2kW | |||||
| BSTR-100I | 180 VDC 4.0kW | ||||||
| BSTR-105I | 180 VDC 4.7kW | ||||||
| BSTR-115I | 180 VDC 5.2kW | ||||||
| BSTR-120I | 270 VDC 5.6kW | ||||||
| BSTR-130I | 270 VDC 6.6kW | 200VAC3.7kW | |||||
| BSTR-140I | 270 VDC 7.5kW | ||||||
| BSTR-150I | 270 VDC 8.7kW | ||||||
| BSTR-170I | 180 VDC 10.4kW | 200VAC5.5kW | 1200 （47.2） | 1000 （39.4） | Approx. 90kg/198 lb | ||
※1: A power source of 220 VAC, 60 Hz, 3φ can also be used.
※2 The outdoor type has partially different specifications.
Kouei is Distributor/Agent of Kanetec.
