Japan, Kanetec

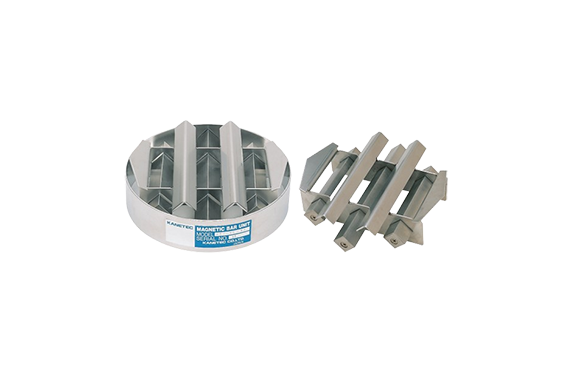

Kanetec KGM-HC Powerful Round Grid Type Magnetic Bar Unit
Product Made in Japan
Manufacturer: Kanetec
Model: KGM-HC: KGM-HCF20/KGM-HC20
Features
A round type combined with powerful magnetic bars that can easily be set on hoppers and chutes.
Specifications
| Model | Type | Surface Max. Magnetic Flux Density | Processing Capacity | No. of Magnets | Dimensions | Mass | |
|---|---|---|---|---|---|---|---|
| 320 mT (3200 G) | Frame dia. | Height | |||||
| KGM-HC20 | Without outer frame | 4.5m³/h | 3 | φ200 (7.87) | 60 (2.36) | 1.6kg /3.52 lb | |
| KGM-HCF20 | With outer frame | 4.5m³/h | 3 | φ200 (7.87) | 60 (2.36) | 2.0kg /4.41 lb | |
| KGM-HC25 | Without outer frame | 7.0m³/h | 4 | φ250 (9.84) | 60 (2.36) | 2.0kg /4.41 lb | |
| KGM-HCF25 | With outer frame | 7.0m³/h | 4 | φ250 (9.84) | 60 (2.36) | 2.4kg /5.29 lb | |
Casing material: SUS304
