Japan, Kanetec

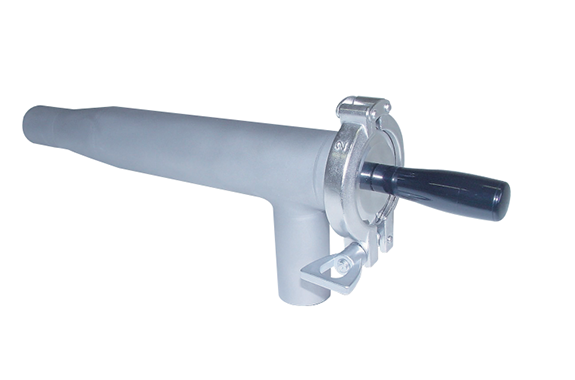

Kanetec PCML-S Powerful Magnetic Filter For Resin Molding
Product Made in Japan
Manufacturer: Kanetec
Model: PCML-S (PCML-15-S)
Application
●Attracts and removes iron mixed in resin (powder, particles) by a strong permanent magnet.
Features

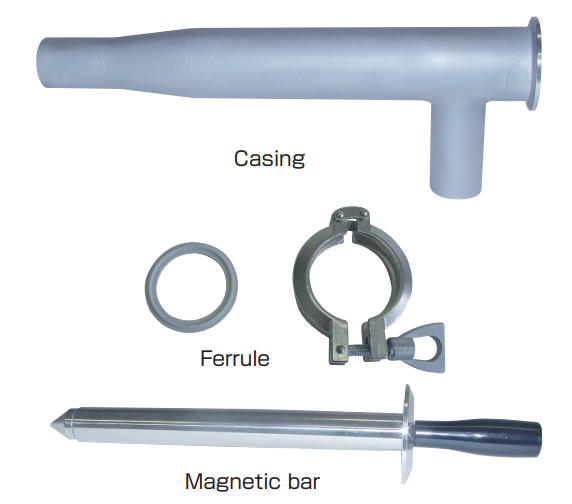

●Simple construction for easy overhaul and cleaning.
●Compact and light weight, requiring little installation space.
●A powerful magnet having a property value of 1.2 T (12,000 G) or over is incorporated and the surface maximum magnetic flux density is 0.8 T (8,000 G) or over attracts and removes iron mixed in resin.
●Since a permanent magnet that maintains a strong magnetic force almost perpetually is used, the running cost can be reduced significantly.
Dimensions
Specifications
| Model | Surface Material | Surface Finish | Surface Max. Magnetic Flux Density | Working Temperature | Mass |
| PCML-15-S | SUS304 | #200 buffed (Magnetic bar) / Inside: #200 buffed, Outside: Pickled (Casing) | 0.8 T (8000 G) or over | Upper limit 80°C (176°F) | Approx. 2kg / 4.4 lb |
Example of PCML Special Fabrication
