Japan, Kansai Electric Heat Corp

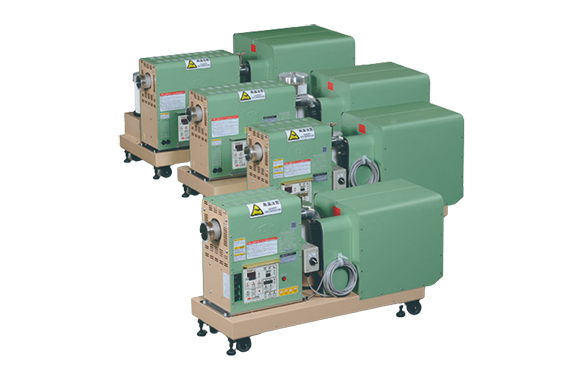

Kansai Electric Heat Corp H-Type Series T.S.K Hot-air Generator
Made in Japan
Manufacturer: Kansai Electric Heat Corp
Model: H-Type Series
Features
Various features adorn the high-pressure blower
Input-output service terminals are available on all types of this blower.
We install safety circuits in each type of blower, and we use high-reliability thermocouples in these safety circuits.
This blower has achieved a noise reduction of about 5dB
Specification
| Model | Type | Power | Heater | Continuous use | Motor capacity | Max. air volume | Max. static pressure |
| 50/60Hz | capacity | max. temp. | (kW) | (m3/min) | (kPa) | ||
| 50/60Hz | 50/60Hz | 50/60Hz | |||||
| TSK-22H4 | 3200-3C-X4-L | 3-phase | 3kW | 350ﾟC | 0.55/0.85 | 1.9/2.2 | 10.1/13.8 |
| 3200-5C-X4-L | 200V/ | 5kW | |||||
| TSK-32H5 | 3200-7.5C-X5-L | 200V･220V | 7.5kW | 1.3/1.9 | 2.9/3.3 | 15.0/17.3 | |
| TSK-52H6 | 3200-10C-X6-L | 10kW | 2.3/3.4 | 4.1/4.9 | 19.8/24.1 | ||
| TSK-53H7 | 3200-12C-X7-L | 12kW | 3.3/5.0 | 5.4/6.1 | 17.5/22.9 | ||
| TSK-62H8 | 3200-15C-X8-L | 15kW | 5.0/7.0 | 8.0/9.3 | 23.8/26.5 | ||
| TSK-72H9 | 3200-20C-X9-L | 20kW | 7.0/11.0 | 10.1/12.1 | 24.8/25.0 |
