Kanto Co., Ltd.

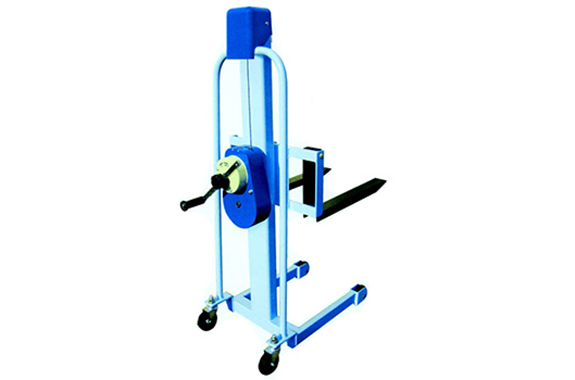

KANTO Sub E Battery-Powered Hydraulic Lifter
Manufacturer: Kanto Co., Ltd.
Made In Japan.
Model: Sub E
Specifications
| Description | |
|---|---|
| 1. Maximum Load Capacity | 150 kg |
| 2. Load Center | 250 mm |
| 3. Lifting Height | 120~1000 mm |
| 4. Overall Height | 1395 mm |
| 5. Width | 480 mm |
| 6. Overall Length | 850 mm |
| 7. Turning Radius | Approx. 950 mm |
| 8. Fork Width Adjustment | (Outer Width) 150~450 mm |
| 9. Hydraulic Unit | (Motor) DC12V, 0.9 kW |
| (Pump) Gear Type | |
| (Working Oil Volume) Approx. 1.2 liters | |
| 10. Hydraulic Cylinder | φ35 × φ25~460 STmm stroke |
| 11. Lifting Speed | (Lifting) Approx. 5.5 m/min |
| (Lowering) Adjustable | |
| 12. Battery | Automotive Battery DC12V |
| 75D26R (N-50) | |
| 13. Charger | (Input) AC100V |
| (External) (Output) DC12V, 8A | |
| 14. Paint Color | (Main Body) 2.5PB7/6 (Munsell Color Code) |
| (Fork) Black |
Note: There may minor changes during production.
