Features

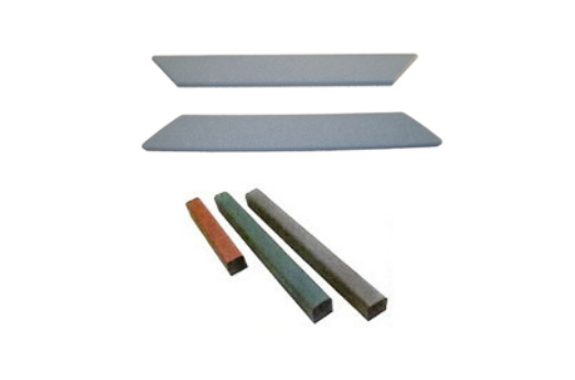

It is a product made by solidifying rubber chips. It has excellent cushioning and is used as a flooring material and curb in kindergartens and parks. We have a wide variety of products such as tiles, rolls, rubber chip pavers, curbs, and car stops. It is also available in a wide variety of colors.

Borderpiece

It is a slope made of rubber chip end cutout. A border piece is used on the edge where the rubber chip tile is installed, and the step is eliminated and the finish is beautiful.

specification

color	It is compatible with the same color as the Lyle Safety Mat (rubber chip tile).
Unit of Measure	1 pc
Adhesive (sold separately)	5kg, 16kg Suggested use: 5kg… 10㎡、16㎏… 30㎡
Mounting method	Please use it by pasting it on the entire surface with a special adhesive.
remarks	・It is a made-to-order product. ・Please perform all adhesion. This product is for outdoor use. ・The pigment of the colored chip is scraped off over time, and the color becomes black. ・There may be some color variations depending on the manufacturing lot. ・The color may differ from the actual product depending on the usage conditions, such as the display. ・The color may fade depending on the environment in which it is used. ・Product specifications are subject to change for improvement.

product	type	Size (thickness× width× length)	weight
Borderpiece 17	Y/Z	17㎜×50㎜×300㎜	0.22㎏
Borderpiece 25	A/B	25㎜×50㎜×200㎜	0.23㎏

* Compatible with Lyle 300 Angle 17, Lyle 600 Angle 17, Lyle 600 Angle 25.

Borderpiece construction
Construction of the corners of rubber chip tiles

The two sides of the borderpiece are arranged in a staggered manner.
Borderpiece 17

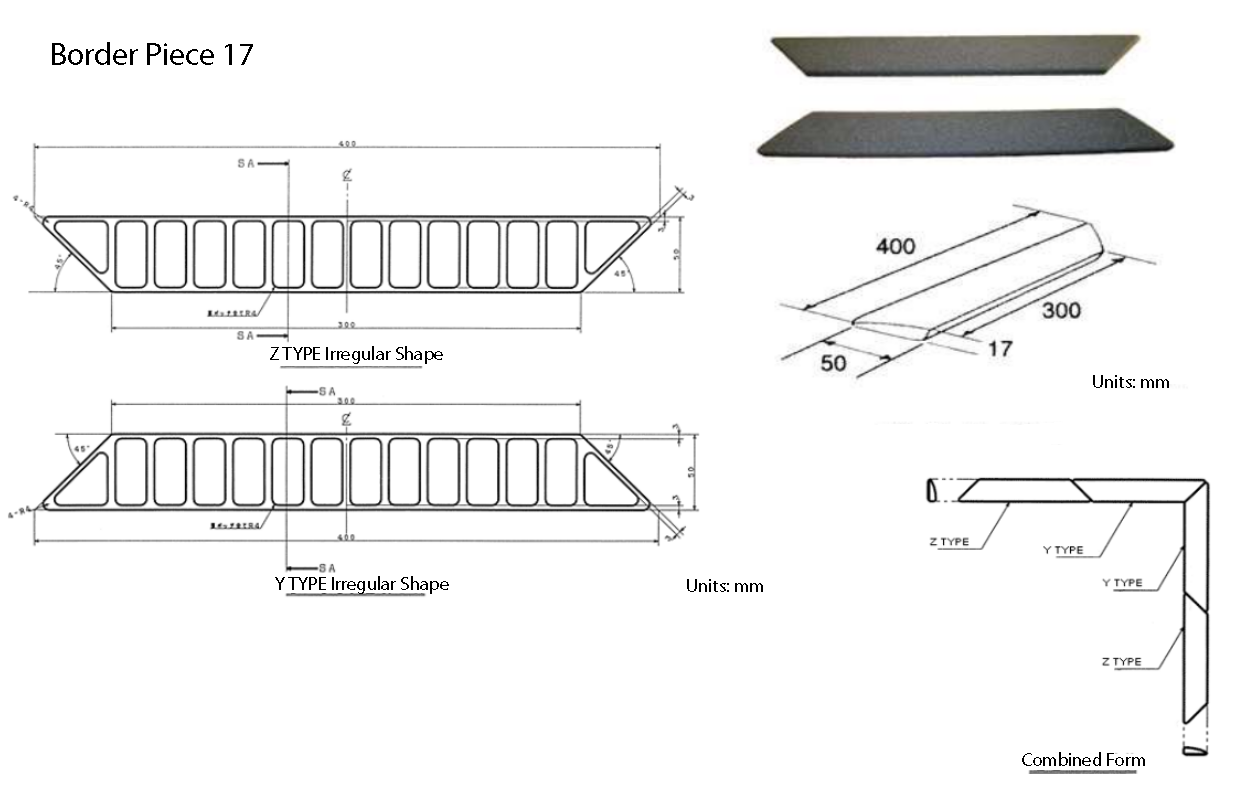

Borderpiece 17 Drawing

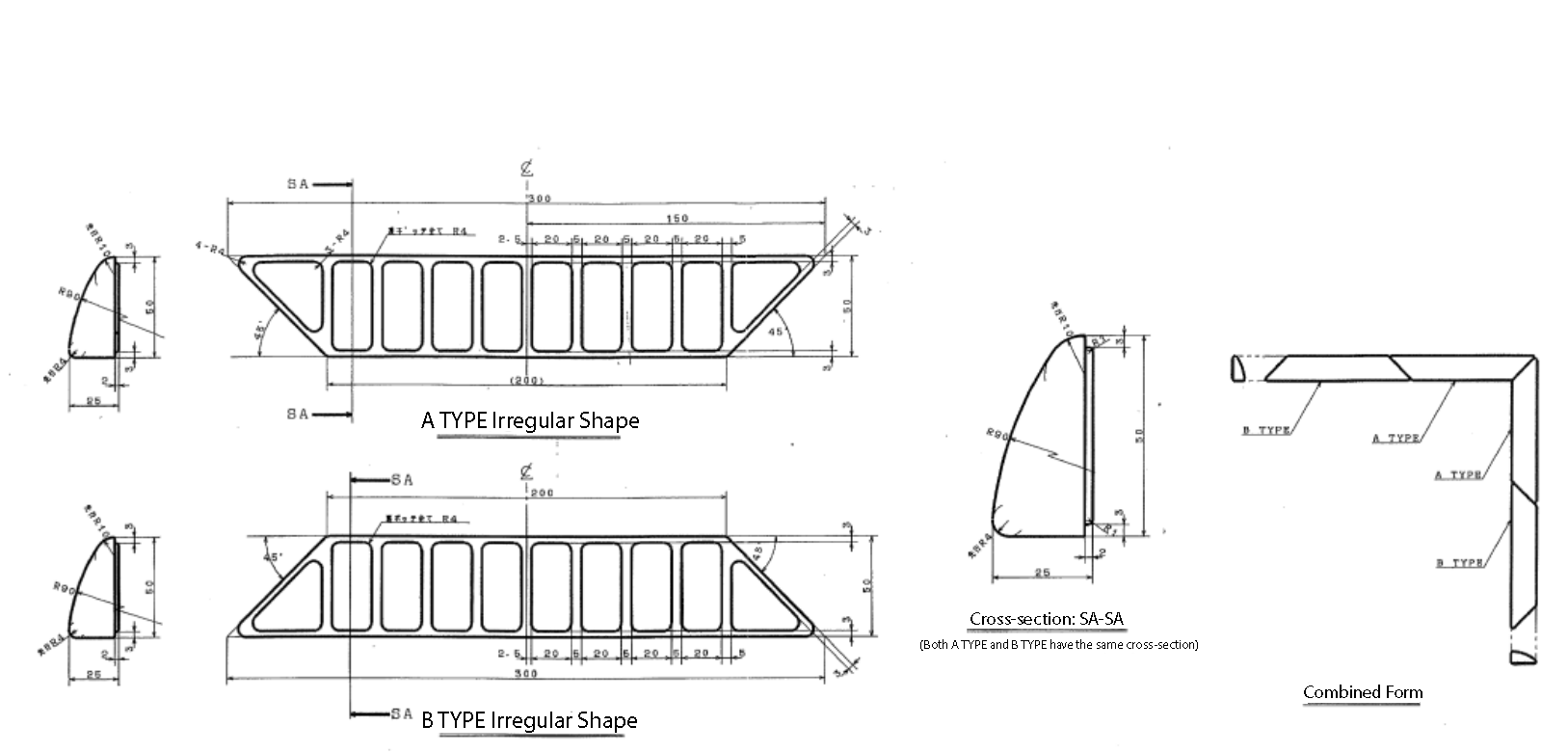

Borderpiece 25 Drawing

Eco Lock Guard

It is a long type of rubber curb. It has excellent shock absorption and gently guards sandboxes and flower beds. In addition, since it can be easily bent by human power, it is easy to construct curved parts.

forte

Workability: It is a long type, and it can be easily bent by human power, and it is easy to construct by simply creating and fixing a bend that matches the site. (Minimum bending radius r = about 2,000 mm)
safety: It has excellent shock absorption and reduces injuries caused by unevenness in the event of a fall.
durability: The surface layer is made of EPDM colored rubber (solid) with good weather resistance.

specification

material	Surface material… EPDM Solid Color (Surface Embossing) Core Material… Recycled rubber chips (foam rubber)
color	Green, Brick, Brown
Unit of Measure	1 pc
Adhesive (sold separately)	5kg, 16kg Suggested use: 5kg… 10㎡、16㎏… 30㎡
Construction method	Adhesive type, anchor type
remarks	・ Use an anchor type for curved construction, and fix it firmly with adhesive and anchor. ・The anchor mounting type comes with a special cap. ・ Please prepare the anchor by the customer. ・There may be some color variations depending on the manufacturing lot. ・The color may differ from the actual product depending on the usage conditions, such as the display. ・The color may fade depending on the environment in which it is used. ・Product specifications are subject to change for improvement.

product	type	Size (height×width× length)
Eco Lock Guard 60	Adhesive Type/Anchor Type	60㎜×100㎜×1500㎜
Eco Lock Guard 100	Adhesive Type/Anchor Type	100㎜×100㎜×1500㎜

Color options

Color: Green
green

Color: Brick
Brick

Color: Brown
brown

cross-section view

Cross-sectional view Adhesive type
Adhesive type

Cross-sectional view Anchor type
Anchor Type

Construction cross-sectional view

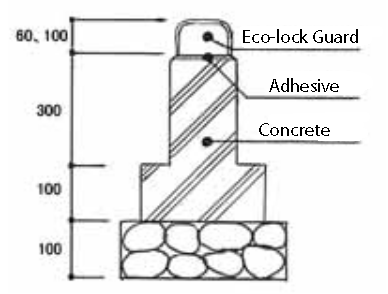

Cross-sectional view of construction Adhesive type
Adhesive type In the case of
linear construction, the adhesive type is used and fixed with adhesive. Pay attention to the curing time.
Recommended adhesive: Urethane-based adhesive

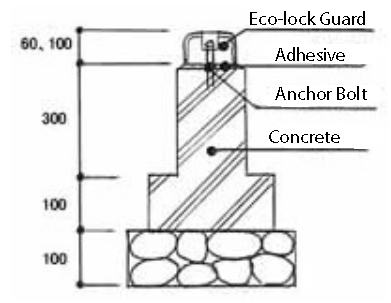

Construction cross-sectional view Anchor type
Anchor type When constructing a curve according to the
construction location, the anchor and adhesive are used together to fix it.
Anchor: 3 M10mm per anchor Recommended
adhesive: Urethane-based adhesive

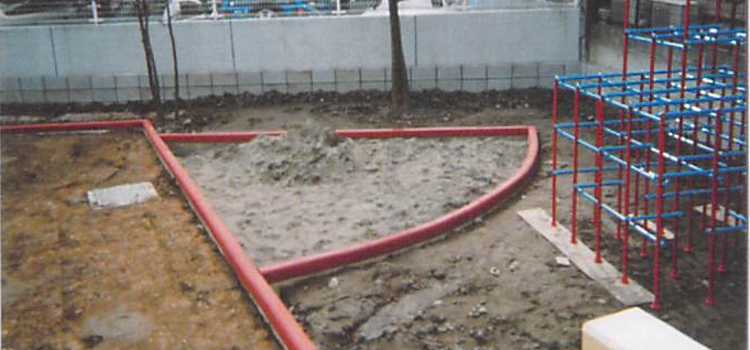

Example of construction: Used for the edge of a sandbox in a park
Curbs in the park sandbox

Construction example: Used for blocks in flower beds
Blocks in flower beds

Rubber Blocks

It is a rubber curb made by thermoforming recycled rubber chips with a special polymer. It can also be used for gardening partitions and decorative blocks of concrete blocks.

specification

material	Colored chips
Size (height×width× length)	H100㎜×W120㎜×L400㎜
color	Tinted Green, Tinted Brown, Tinted Grey It will be the same color as the coloring of Lyle Safety Mat (rubber chip tile).
Unit of Measure	1 pc
Adhesive (sold separately)	5kg, 16kg Suggested use: 5kg… 10㎡、16㎏… 30㎡
Construction method	Fixed with adhesive
remarks	・It is a made-to-order product. ・Curve construction is not supported. In that case, please use Eco Lock Guard. ・The pigment of the colored chip is scraped off over time, and the color becomes black. ・There may be some color variations depending on the manufacturing lot. ・The color may differ from the actual product depending on the usage conditions, such as the display. ・The color may fade depending on the environment in which it is used. ・Product specifications are subject to change for improvement.

Product Picture Rubber Block
Rubber Blocks

Product Picture Rubber Block Back Side
Rubber block back side

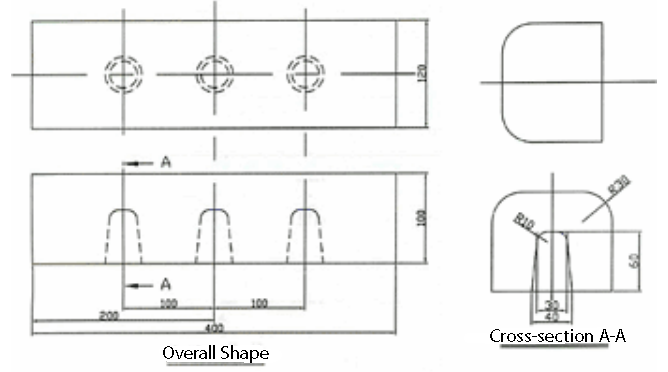

cross-section view

drawing

Construction example: Curb for a flower bed

Construction example: Close-up photo of the curb of a flower bed

Curbs in flower beds

Step ramp

It is a ramp made of rubber chips. It absorbs unpleasant sounds and can be used with a soft feeling. We have set 5 heights. Please select the height according to the place where you will use it. If the width is not enough, you can also connect them using a connecting bracket.

specification

color	500 square slope… Color chips, colored chips… Tinted Green, Tinted Brown, Tinted Grey It will be the same color as the coloring of Lyle Safety Mat (rubber chip tile).
Unit of Measure	1 pc
remarks	・It is a made-to-order product. ・ The 500 square slope, Laslo 25 straight, Laslot 50 straight, and Laslot 55 line are not compatible with connecting fittings. ・Do not use in places where vehicles pass. ・The pigment of the colored chip is scraped off over time, and the color becomes black. ・There may be some color variations depending on the manufacturing lot. ・The color may differ from the actual product depending on the usage conditions, such as the display. ・The color may fade depending on the environment in which it is used. ・Product specifications are subject to change for improvement.

product	Size (thickness× width× length)	specification	weight
500 square ramp 30	30㎜×500㎜×500㎜	colordual-layer	6.2㎏
500 square slope 40	40㎜×500㎜×500㎜	colordual-layer	8.4㎏
Laslo 25 straight (without connecting fittings)	25㎜×300㎜×500㎜	Colored single layer	2.4㎏
Laslo 50 straight (without connecting bracket)	50㎜×300㎜×500㎜	Colored single layer	4.8㎏
Laslo 55 straight (without connecting fittings)	55㎜×300㎜×500㎜	Colored single layer	7.6㎏
Lasro 70 straight (with connecting fittings)	70㎜×350㎜×500㎜	Colored single layer	9.3㎏
Laslo 100 straight (with connecting fittings)	100㎜×350㎜×500㎜	Colored single layer	11.9㎏
Laslo 100 straight corner (with connecting bracket)	100㎜×350㎜×350㎜	Colored single layer	5.4㎏

drawing

Drawings Laszlo 25 straight
Laslo 25

Drawings Laszlo 50 straight
Laslo 50 straight

Drawings Laszlo 70 straight
Laslo 70 straight
(Laslo 55 straight is different thickness)

Drawing Laslo 100 straight
Laslo 100 straight

Drawing: Laslo 100 straight corner
Laslo 100 Straight Corner

Drawing: Coupling bracket
Coupling bracket

merit

・ Good cushioning
・ Various sizes and colors
・ Depending on the product, partial repair is also possible.
・ Safety measures in case of falls
・ Sound reduction

demerit

・ There is peeling of the rubber tip.
・ The paint on the surface of the colored chip peels off due to rubbing, etc., and the black chip inside comes out.
・ Dust easily gets into the gaps between chips.

Construction example

・ Gardens and terraces (flooring) of kindergartens and nursery schools
・ Under the playground equipment in the park (flooring)
・ Curbs (peripheral members) for sandboxes and flower beds
・ Parking lots

Kindergarten Terrace

The edges are finished with a trowel finish and the elevation is finished with a cushion mat.

Product: Rubber chip elastic pavement
Green color chip construction number of
days: 1 day
The end is finished with a trowel. The rising surface is covered with a cushion mat. The fitting of the pipe part is a finish unique to paving construction.
* Currently, we do not handle resin steps.
