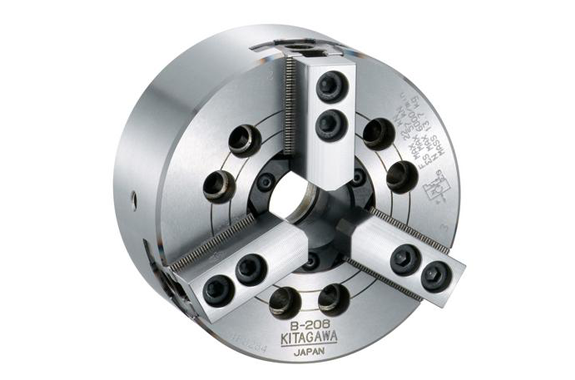

Kitagawa B-200 Series Standard Chuck
Manufacturer: Kitagawa Corporation.
Model: B-200 series
Feature:
Standard chuck recognised by the global market
CE correspondence
Specification
The max. draw bar pull force and the max. static gripping force in the following specifications are for external diameter gripping.
When used for internal diameter gripping, the draw bar pull force must be less than half of the max. draw bar pull force.
| Model | B-204 | B-205 | B-206 | B-208 | ||
|---|---|---|---|---|---|---|
| Through-hole (mm) | 26 | 33 | 45 | 52 | ||
| Gripping Range (mm) | Max. | 110 | 135 | 169 | 210 | |
| Min. | 7 | 12 | 16 | 13 | ||
| Jaw Stroke (Diameter) (mm) | 5.4 | 5.4 | 5.5 | 7.4 | ||
| Plunger Stroke (mm) | 10 | 10 | 12 | 16 | ||
| Max. Draw Bar Pull Force (kN) | 14 | 17.5 | 22 | 34.8 | ||
| Maximum static clamping force (kN) | 28.5 | 36 | 57 | 86 | ||
| Max. Speed (min-1) | 8000 | 7000 | 6000 | 5000 | ||
| Moment of Inertia (kg･m2) | 0.007 | 0.018 | 0.058 | 0.17 | ||
| Net Weight (kg) (with Soft Top Jaws) | 4 | 6.7 | 11.9 | 22.3 | ||
| Matching Cylinder | F0933H | F0933H | S1246 | S1552 | ||
| Matching Soft Jaws The package does not include jaw-mounting bolts. | Standard Extra Tall | Standard Extra Tall | Standard Extra Tall | Standard Extra Tall | ||
| Matching Hard Jaws We do not include jaw-mounting bolts. | HB04N1 | HB04N1 | HB06A1 HB06B1 | HB08A1 | ||
| Model | B-210 | B-212 | B-215 | ||
|---|---|---|---|---|---|
| Through-hole (mm) | 75 | 91 | 100 | ||
| Gripping Range (mm) | Max. | 254 | 304 | 381 | |
| Min. | 31 | 34 | 50 | ||
| Jaw Stroke (Diameter) (mm) | 8.8 | 10.6 | 10.6 | ||
| Plunger Stroke (mm) | 19 | 23 | 23 | ||
| Max. Draw Bar Pull Force (kN) | 43 | 55 | 98 | ||
| Max. Static Gripping Force (kN) | 111 | 144 | 249 | ||
| Max. Speed (min-1) | 4200 | 3300 | 2800 | ||
| Moment of Inertia (kg･m2) | 0.315 | 0.738 | 2.2 | ||
| Net Weight (kg) (with Soft Top Jaws) | 34.5 | 55.3 | 116 | ||
| Matching Cylinder | S1875 | S2091 | F2511H | ||
| Matching Soft Jaws The package does not include jaw-mounting bolts. | Standard Extra Tall | Standard Extra Tall | Standard Extra Tall | ||
| Matching Hard Jaws The package does not include jaw-mounting bolts. | HB10A1 | HB12N1 | HB15N1 | ||
Note: The 3D data includes two types of the positions of the jaws for both Parasolid and STEP: open end (UC) and closed end (OC).
